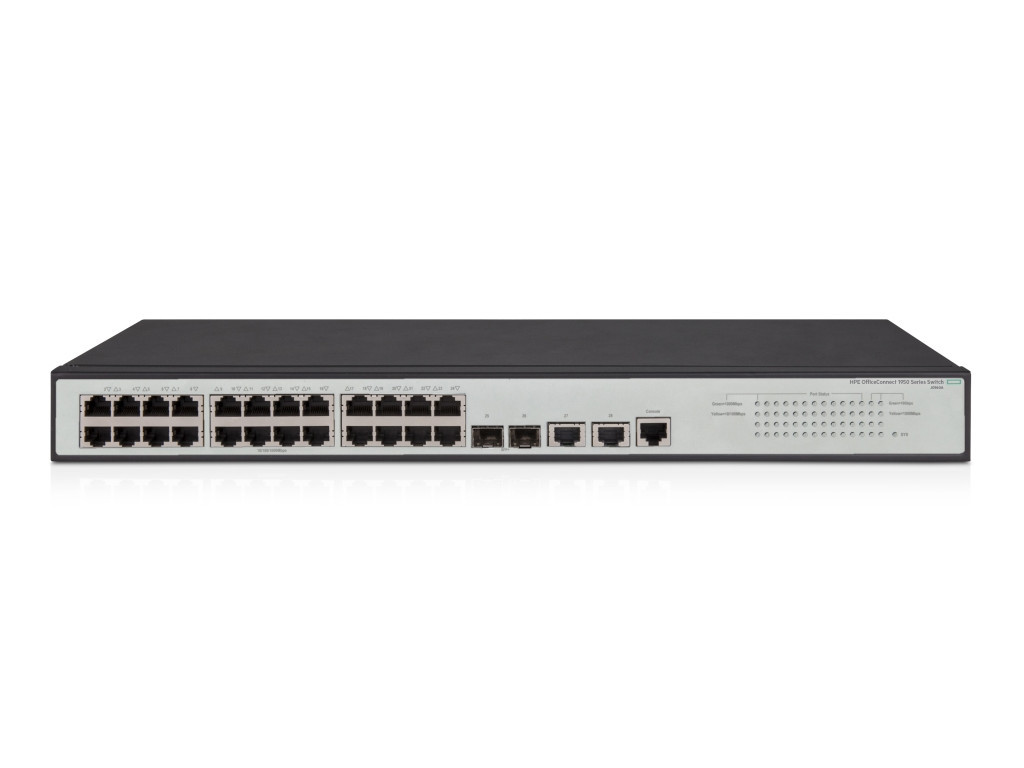

Комутатор HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch

★★★★★ (0 ревюта)

HPE

_модел JG960A

_цена 2769.66 лв.

_{код на продукта} 8906

_{наличност} със запитване

Описание на продукта

HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

28
Основни портове, тип

24x10/100/1000Base-T
Power Over Ethernet (PoE)

No
Uplink портове

2x10GE SFP, 2x10GBase-T
Свободни (10GB) слотове

No
Управление

Intuitive Web browser-based management; Secure Web-management sessions with HTTPS/SSL; SNMPv1, v2c, and v3; Complete session logging; Dual flash images; Port mirroring; RMON; NTP; IEEE 802.1AB Link Layer Discovery Protocol (LLDP); CLI; Default DHCP client
Stackable

True stacking allows for redundancy while simplifying administration
Fans

Low-speed fan: 19.0 dB, High-speed fan: 44.5 dB
Захранване

AC voltage: 100-240 VAC; Maximum power rating: 34 W
Routing

Layer 3 Lite
Памет (Flash, RAM)

Flash Memory: 128 MB; RAM: 1 GB SDRAM
Капацитет за маршрутизиране/превключване, Gbps

128 Gbps
Пропускателна способност, Mpps

95.2 Mpps
MAC адреси

16384 MAC addres table size
VLAN (брой, стандарти)

Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
QoS

Broadcast control, Rate limiting, Traffic prioritization (Recognizes both IEEE 802.1p and DSCP prioritization tagging. Packets are mapped to four hardware queues for more effective throughput), Powerful QoS feature (SP, WRR and SP+WRR queuing)
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D MAC Bridges, IEEE 802.1D STP, IEEE 802.1p, IEEE 802.1Q
L3 мрежови стандарти

Static IPv4/IPv6 routing: provides basic routing (supporting up to 512 static routes and 32 VLAN interface on aggregation model; 32 static routes and 8 VLAN interfaces on access models); allows manual routing configuration
IPv6 functionality

IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS
Сигурност

Access Control Lists (ACLs); IEEE 802.1X and RADIUS network logins; Port isolation; ARP attack protection; Automatic VLAN assignment; STP BPDU port protection; STP root guard; Automatic denial-of-service protection; Management password
Размери (Ш, Д, В), mm

436 x 160 x 44
Опция за монтаж

Desktop/Rackmount
Други

1 RJ-45 console port to access limited CLI port
