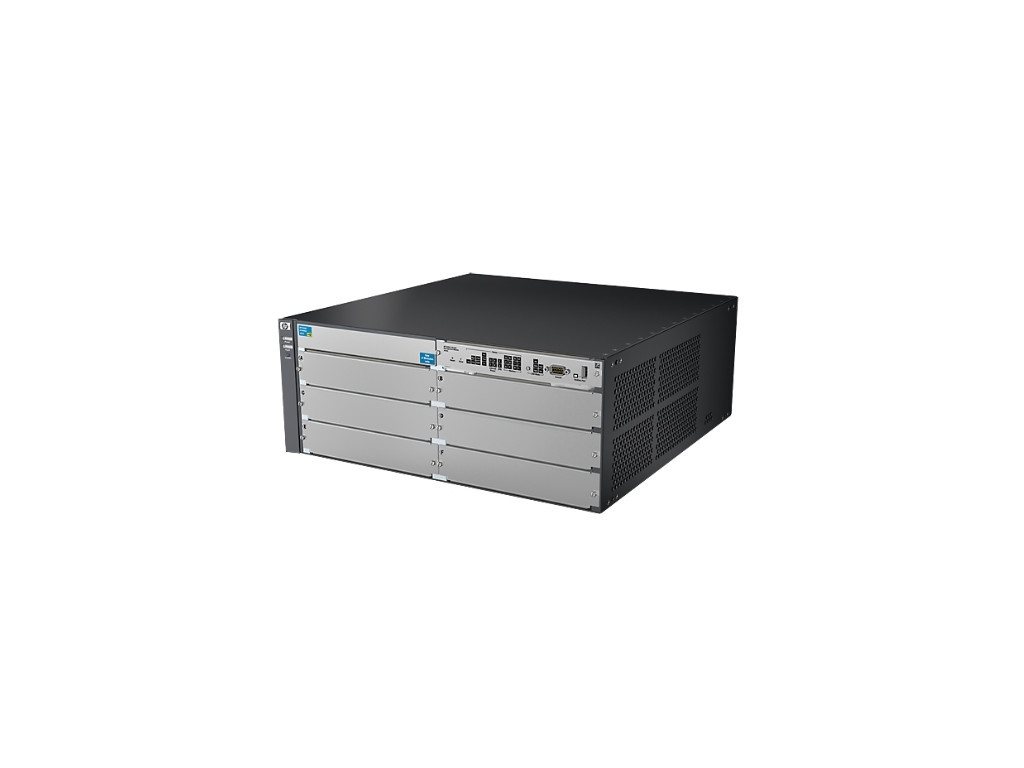

Комутатор Aruba 5406R zl2 Switch
HPE
модел J9821A
цена
5977.86 лв.
код на продукта 8892
гаранция 99 месеца
тегло 14
наличност със запитване
Описание на продукта
Aruba 5406R zl2 Switch Виж характеристиките
- ✓ Модел: Aruba 5406R zl2 Switch
- ✓ За: за бизнеса
- ✓ Група: HP мрежови продукти
- ✓ Подгрупа: Switches
- ✓ Тегло: 14
- -
- Суич, типModular
- Общ брой портове
- Основни портове, тип
- Power Over Ethernet (PoE)No
- Uplink портове
- Свободни (10GB) слотове6 open module slot; Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
- УправлениеIMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial rs-232c or micro usb)
- StackableYes
- Fans1 fan tray slot (Includes: 1 x J9831A)
- Захранване2 power supply slots - 1 minimum power supply required (ordered separately)
- RoutingLayer 3 Advanced
- Памет (Flash, RAM)Flash Memory: 16 MB, RAM: 4 GB DDR3 SODIMM
- Капацитет за маршрутизиране/превключване, Gbps960 Gbps
- Пропускателна способност, Mpps571.4 Mpps
- MAC адреси64000 MAC address table size
- VLAN (брой, стандарти)VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously; IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs
- QoSAdvanced classifier-based QoS, Traffic prioritization, Bandwidth shaping, Class of service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- L2 мрежови стандартиIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1X, IEEE 802.1AE, IEEE 802.3az
- L3 мрежови стандартиStatic IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing, OSPF: provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
- IPv6 functionalityIPv6 host: Enables switches to be managed in an IPv6 network; Dual stack (IPv4 and IPv6); IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic; IPv6 routing: supports static and OSPFv3 routing protocols
- СигурностSwitch CPU protection: provides automatic protection against malicious network traffic trying to shut down the switch; Virus throttling: detects traffic patterns typical of WORM-type viruses
- Размери (Ш, Д, В), mm445 x 451 x 175
- Опция за монтажRackmount, 4U Rack
