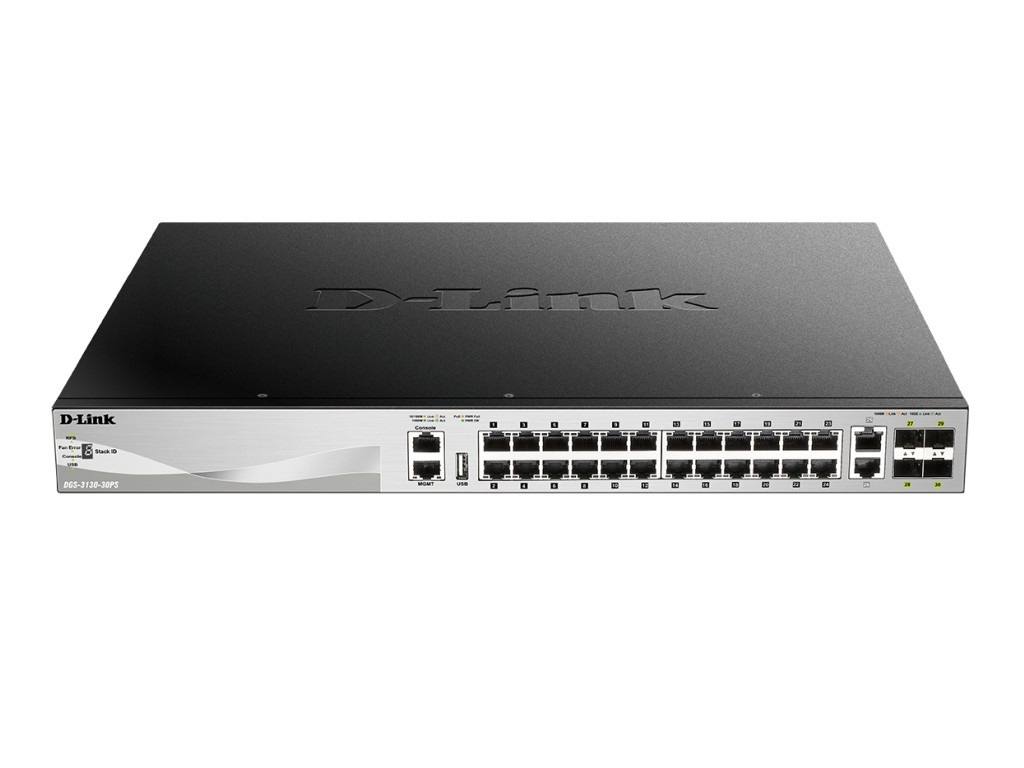

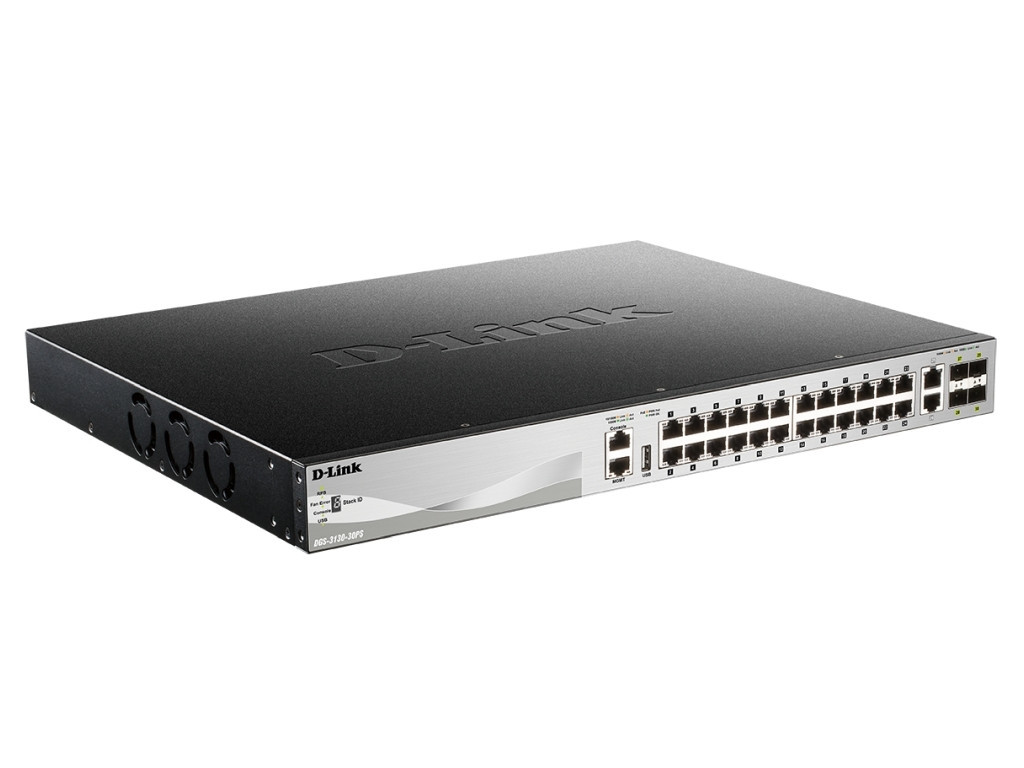

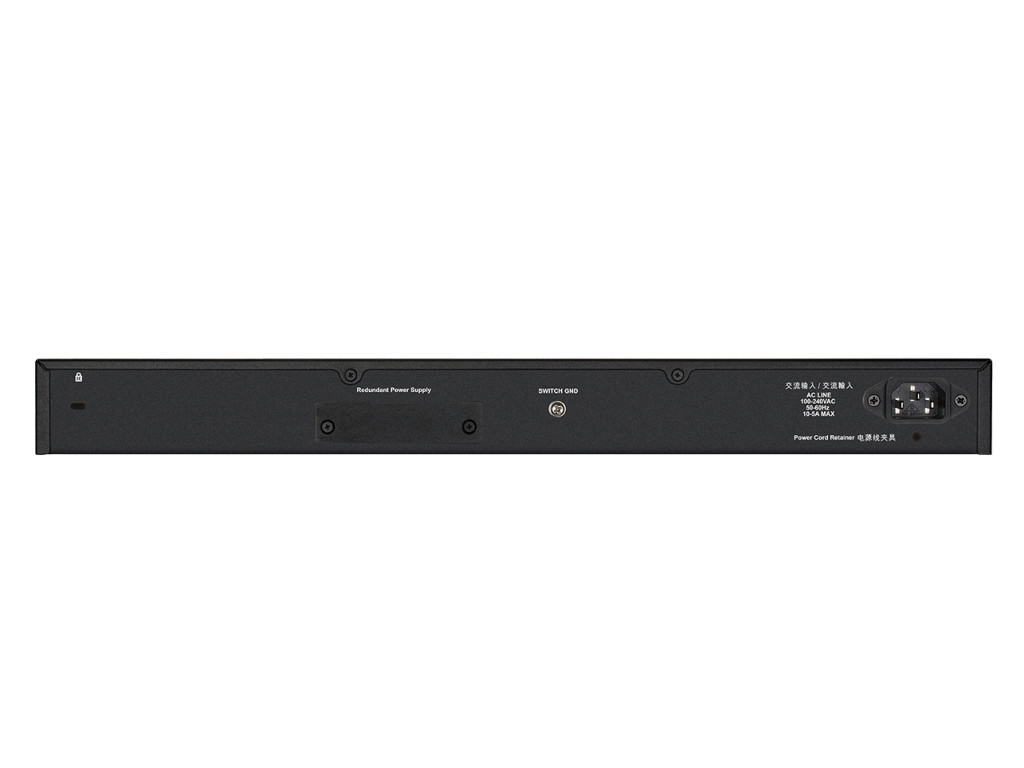

Комутатор D-Link 24 x 10/100/1000BASE-T PoE ports (370W budget) Layer 3 Stackable Managed Gigabit Switch with 2 x 10GBASE-T ports and 4 x SFP+ ports 24200.jpg

Комутатор D-Link 24 x 10/100/1000BASE-T PoE ports (370W budget) Layer 3 Stackable Managed Gigabit Switch with 2 x 10GBASE-T ports and 4 x SFP+ ports

★★★★★ (0 ревюта)

D-LINK

_модел DGS-3130-30PS/SI

_цена 2900.74 лв.

_{код на продукта} 24200

_{наличност} при доставчик

Добави в количката

Описание на продукта

D-Link 24 x 10/100/1000BASE-T PoE ports (370W budget) Layer 3 Stackable Managed Gigabit Switch with 2 x 10GBASE-T ports and 4 x SFP+ ports Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

30
Основни портове, тип

24x10/100/1000Base-T
Power Over Ethernet (PoE)

IEEE 802.3af, IEEE 802.3at, PoE Power Budget: 370W, 740W (with DPS-700 RPS)
Uplink портове

4x10GE SFP, 2x10GBase-T
Свободни (10GB) слотове

No
Управление

Web-based GUI; Command Line Interface (CLI); Telnet Server/Client for IPv4/IPv6; SNMP (Support v1/v2c/v3, Support for IPv4/IPv6 access); SNMP Traps; sFlow; RMON v1/v2; LLDP/LLDP-MED; BootP/DHCP Client; D-Link Discover Protocol (DDP); SMTP; NTPv3/v4
Stackable

4 Stacking ports; When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit so the maximum units per stack is 9.
Fans

3 x Smart fans
Захранване

Power Input: 100 to 240 VAC, 50 to 60 Hz; Optional Redundant Power Supply (DPS-700)
Routing

Layer 3 Advanced
Памет (Flash, RAM)

Packet Buffer Memory: 2 MB
Капацитет за маршрутизиране/превключване, Gbps

168 Gbps
Пропускателна способност, Mpps

125 Mpps
MAC адреси

16000 MAC address table size
VLAN (брой, стандарти)

802.1Q; Auto Surveillance VLAN; Port-based VLAN; 802.1v Protocol-based VLAN; Voice VLAN; MAC-based VLAN; VLAN translation; VLAN Group - Max. 4K VLAN groups, Max. 1~4094 VIDs; GVRP - Max. 4K dynamic VLAN groups; Double VLAN (Q-in-Q) - Port-based/Selective
QoS

802.1p; 8 queues per port; Queue Handling - Strict Priority, Weighted Round Robin (WRR), Strict + WRR, Weighted Deficit Round Robin (WDRR); Policy Map; Congestion Control - Weighted Random Early Detection (WRED); Bandwidth Control; Three Color Marker
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1AX/802.3ad, IEEE 802.3af, IEEE 802.3at
L3 мрежови стандарти

IPv4/IPv6 Static Route; IPv4/IPv6 Default Route; RIPv1/v2/ng; OSPF: OSPF v2/v3, OSPF passive interface, Stub/NSSA area, Support Equal-Cost Multi-Path Route (ECMP), Text/MD5
IPv6 functionality

IPv6 Traffic Class, IPv6 Flow Label, IPv6 Snooping, IPv6 Route Advertisement (RA) Guard, IPv6 ND Inspection, IPv6 ND Entries:1024
Сигурност

Port Security - supports up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; D-Link Safeguard Engine; DHCP Server Screening; IP Source Guard; DHCP Snooping; Dynamic ARP Inspection (DAI); DHCPv6 Guard; SSL; SSH
Размери (Ш, Д, В), mm

440 x 430 x 44 mm
Опция за монтаж

Rackmount
Други

1 x RJ-45 Console port, 1 x RJ-45 Management port, 1x USB 2.0 Type A port
