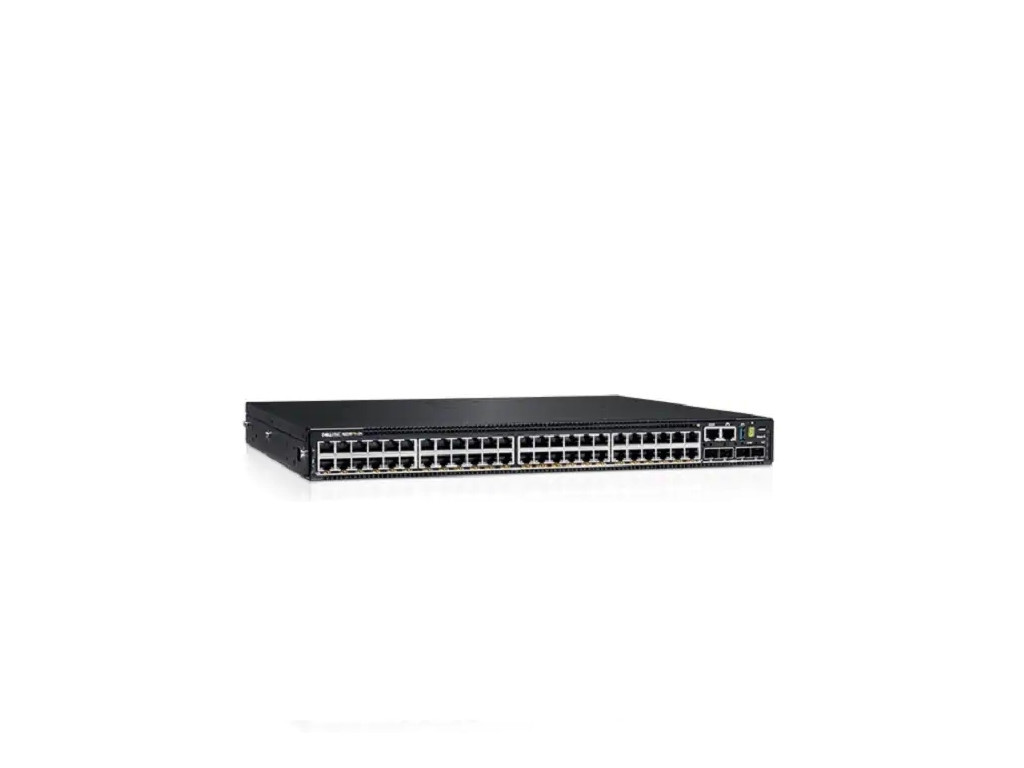

Комутатор Dell EMC PowerSwitch N3248TE-ON

★★★★★ (0 ревюта)

DELL

_модел DNN3248TE_OS10

_цена 13607.66 лв.

_{код на продукта} 8811

_{наличност} при доставчик

Добави в количката

Описание на продукта

Dell EMC PowerSwitch N3248TE-ON, 48x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2x 100G QSFP28 ports, 1x 550W AC PSU, IO/PS, OS10 Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

54
Основни портове, тип

48x 10/100/1000Base-T
Power Over Ethernet (PoE)

-
Uplink портове

4x 10G SFP+ ports
Свободни (10GB) слотове

-
Управление

CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable

2x 100G QSFP28
Fans

Redundant variable speed fans
Захранване

1x 550W AC PSU
Routing

Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Памет (Flash, RAM)

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
Капацитет за маршрутизиране/превключване, Gbps

576 Gbps
Пропускателна способност, Mpps

800 Mpps
MAC адреси

32K
VLAN (брой, стандарти)

Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
QoS

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
L3 мрежови стандарти

RIP, OSPF, VRRP, MIB
IPv6 functionality

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност

RADIUS, TACACS+, 802.1x
Размери (Ш, Д, В), mm

434 x 400 x 43.5 mm
Опция за монтаж

Rackmount
Други

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
