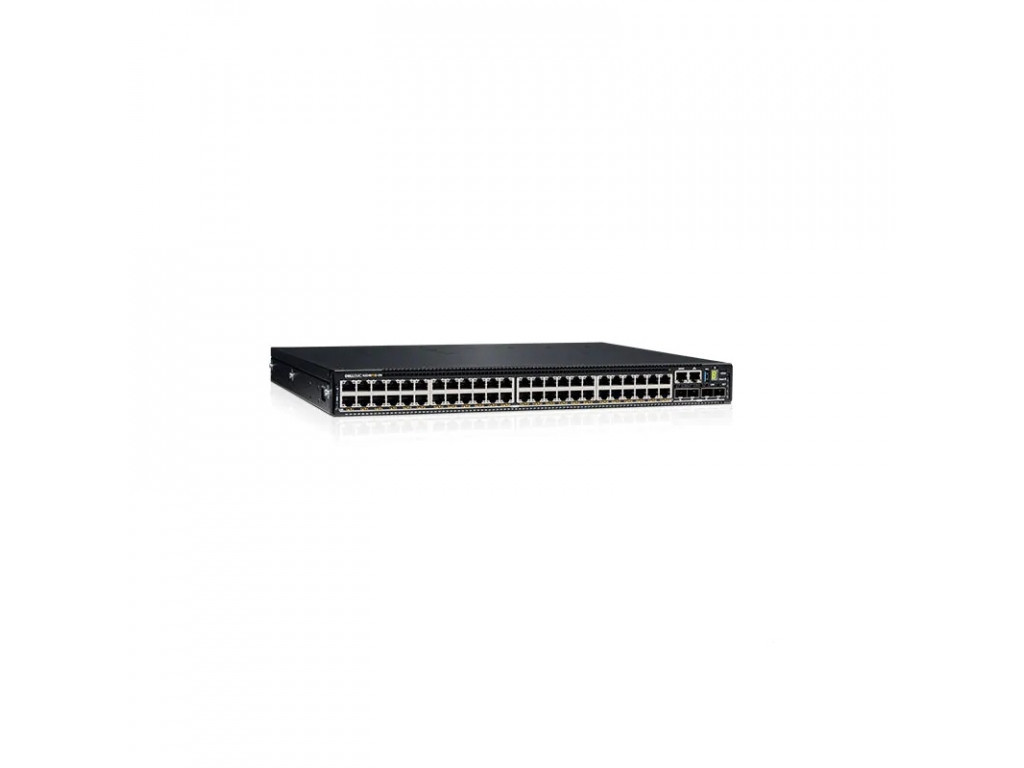

Комутатор Dell EMC PowerSwitch N3248P-ON
DELL
модел DNN3248P
цена
14782.76 лв.
код на продукта 8808
гаранция 99 месеца
тегло 8.87
наличност при доставчик
Описание на продукта
Dell EMC PowerSwitch N3248P-ON, 48x1G RJ-45 with 802.3at (30W) PoE ports, 4x10G SFP+, 2x100G QSFP28, 1x 1050W AC PSU, 1 EPS (optional), IO/PS Виж характеристиките
- ✓ Модел: Dell EMC PowerSwitch N3248P-ON, 48x1G RJ-45 with 802.3at (30W) PoE ports, 4x10G SFP+, 2x100G QSFP28, 1x 1050W AC PSU, 1 EPS (optional), IO/PS
- ✓ За: за бизнеса
- ✓ Група: DELL мрежови продукти
- ✓ Подгрупа: Switches
- ✓ Тегло: 8.87
- -
- Суич, типFixed Port
- Общ брой портове54
- Основни портове, тип48x RJ45 10/100/1000Mb 802.3at (up to 30W) PoE auto- sensing ports
- Power Over Ethernet (PoE)802.3at (30W) PoE
- Uplink портове4x 10G SFP+
- Свободни (10GB) слотове-
- УправлениеCLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
- Stackable2x 100G QSFP28
- Fans3 pluggable fan modules; Normal airflow only
- Захранване1x 1050W AC PSU included; 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs; 1 EPS (optional and conected from MPS-1S or MPS-3S power shelf)
- RoutingLine-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
- Памет (Flash, RAM)4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
- Капацитет за маршрутизиране/превключване, Gbps576 Gbps
- Пропускателна способност, Mpps800 Mpps
- MAC адреси32K
- VLAN (брой, стандарти)Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
- QoSDiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
- L2 мрежови стандарти802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at
- L3 мрежови стандартиRIP, OSPF, VRRP, MIB
- IPv6 functionalityLayer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
- СигурностRADIUS, TACACS+, 802.1x
- Размери (Ш, Д, В), mm434 x 400 x 43.5 mm
- Опция за монтажRackmount, 1U
- Други1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
