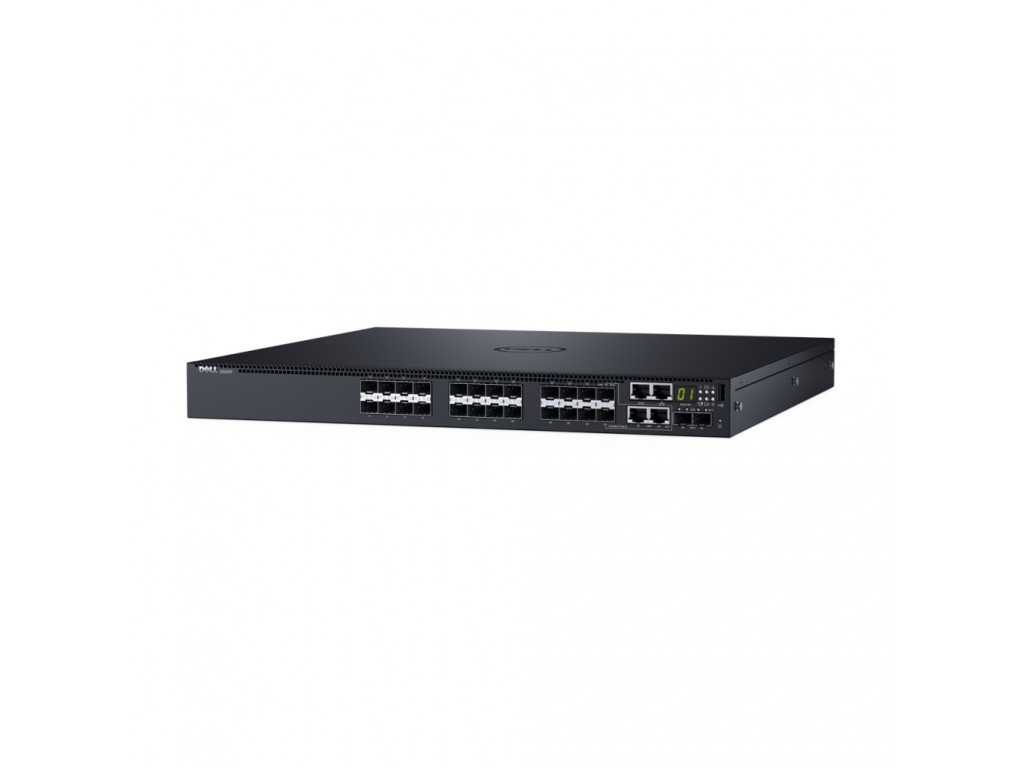

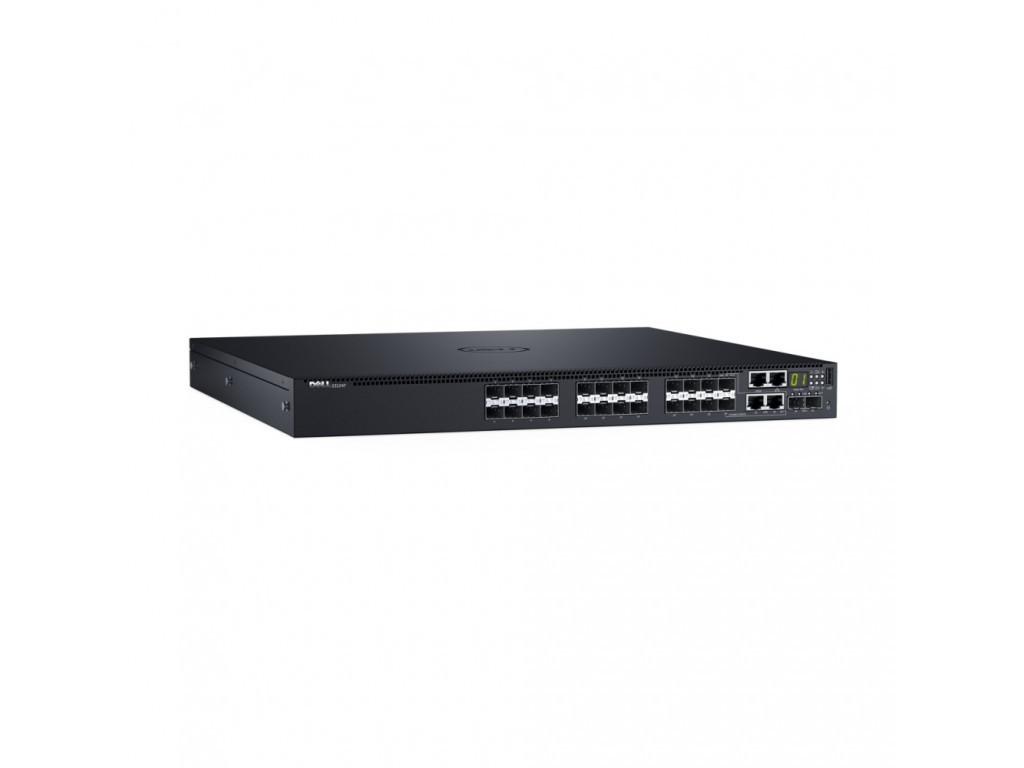

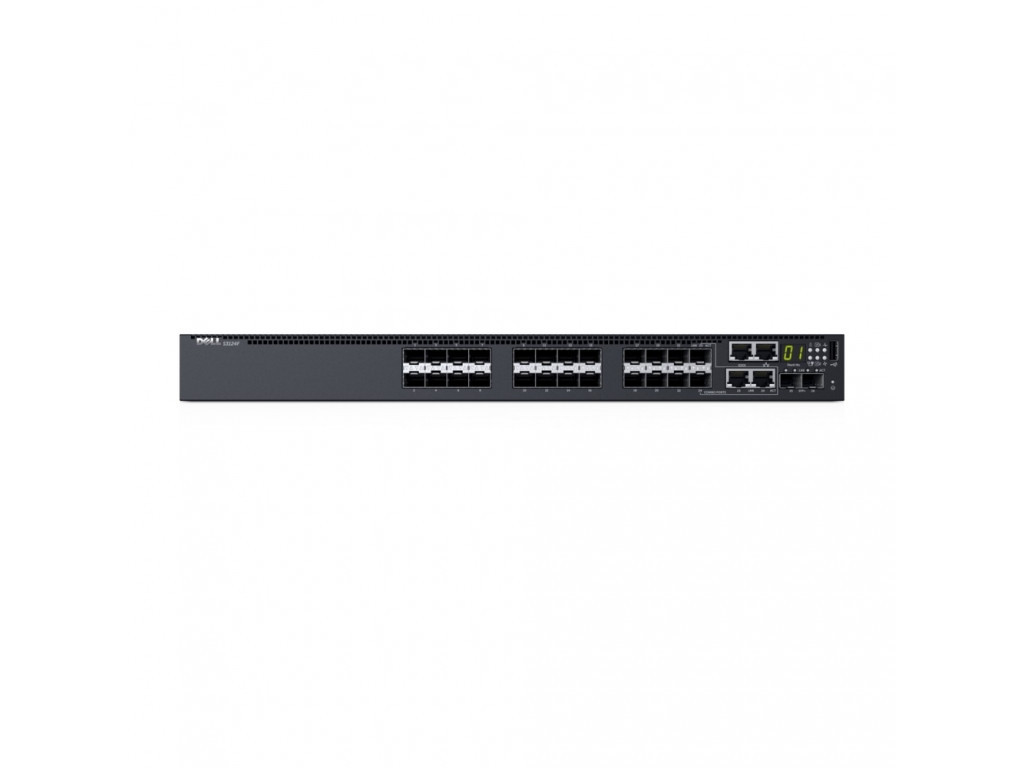

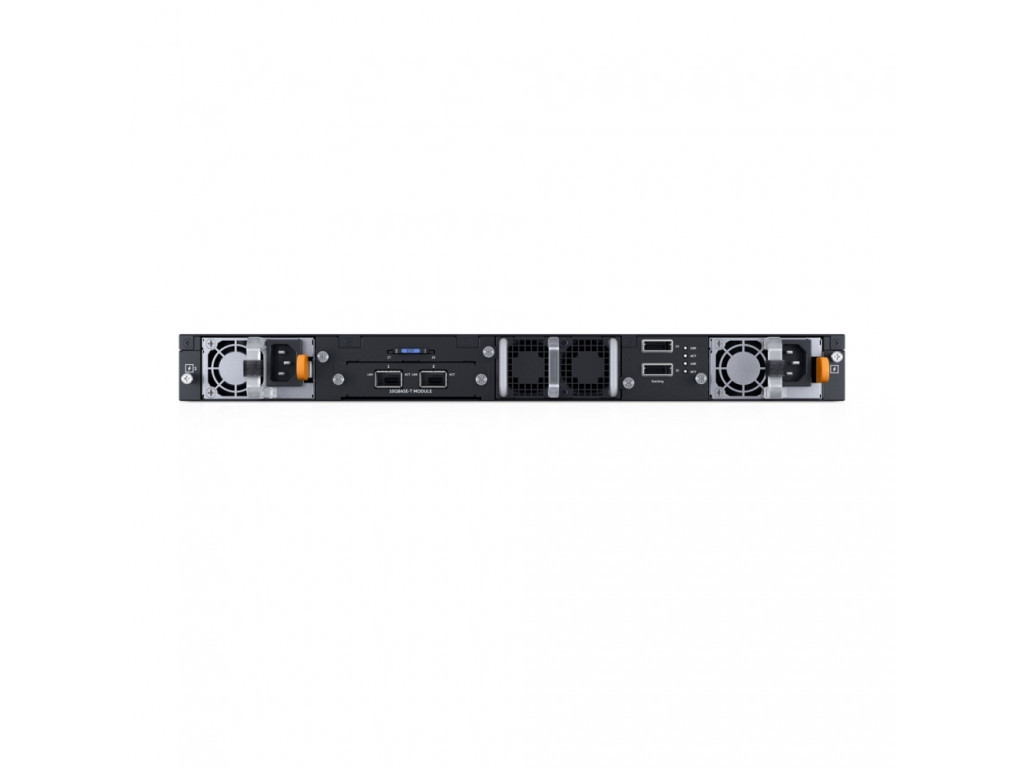

Комутатор Dell Networking S3148

★★★★★ (0 ревюта)

DELL

_модел 210-AIMR

_цена 7700.99 лв.

_{код на продукта} 19725

_{наличност} със запитване

Описание на продукта

Dell Networking S3148, L3, 48x 1GbE, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, 1x AC PSU, LLW Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

52
Основни портове, тип

48x RJ45 10/100/1000Mb auto-sensing ports
Power Over Ethernet (PoE)

-
Uplink портове

2x 10GbE SFP+ ports, 2x GbE combo media ports
Свободни (10GB) слотове

Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT
Управление

Management via an intuitive and familiar CLI, SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection
Stackable

2 rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex)
Fans

Redundant variable speed fans
Захранване

1x 200W PSU included, IO to PSU airflow
Routing

Line-rate Layer 3 routing: IPv4 and IPv6
Памет (Flash, RAM)

256 MB
Капацитет за маршрутизиране/превключване, Gbps

260 Gbps
Пропускателна способност, Mpps

193 Mpps
MAC адреси

56K (80K in L2 scaled mode)
VLAN (брой, стандарти)

Layer 2 VLANs: 4K; 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN support
L2 мрежови стандарти

IEEE compliance: 802.1AB, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1s, 802.1w, 802.1x, 802.1x-2010, 802.3ab, 802.3ac, 802.3ad, 802.1ax, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z
IPv6 functionality

Static routes: 16K (IPv4)/8K (IPv6), Dynamic routes: 16K (IPv4)/8K (IPv6); IPv6 Router Alert Option, IPv6 Scoped Address Architecture, ICMP for IPv6, Neighbor Discovery and etc.
Сигурност

Radius and IPv6, 802.1X with RADIUS, EAP, AES Cipher Algorithm in the SNMP User Base Security Model, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP Protocol
Размери (Ш, Д, В), mm

407 x 434 x 44
Опция за монтаж

Rackmount
Други
