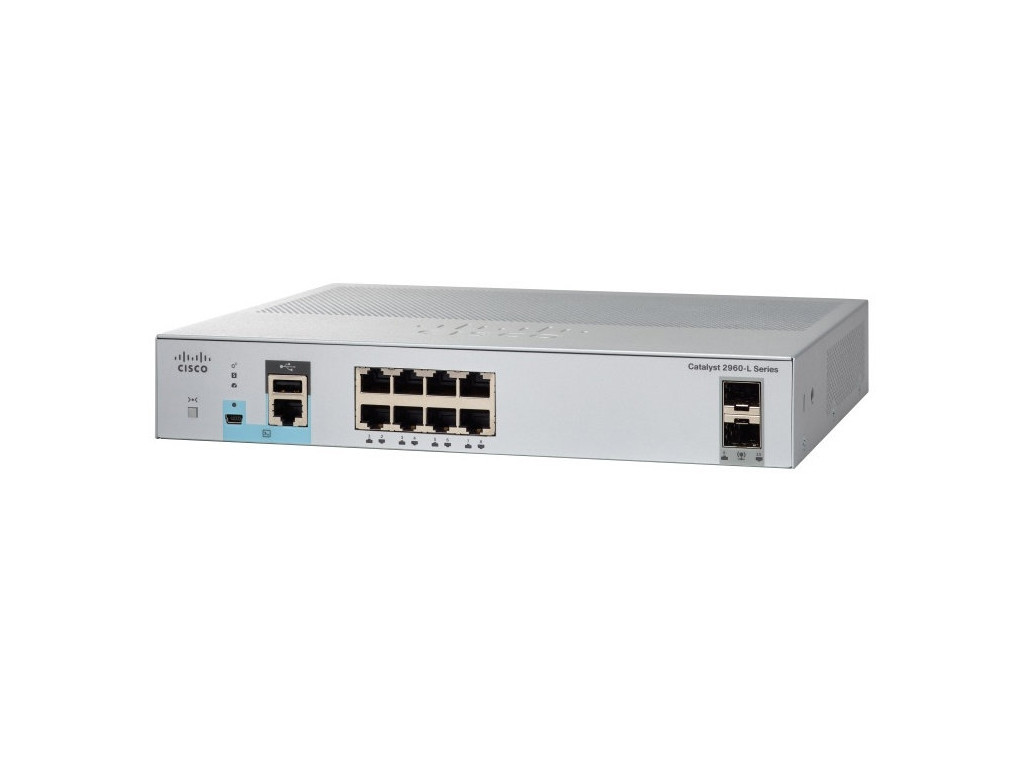

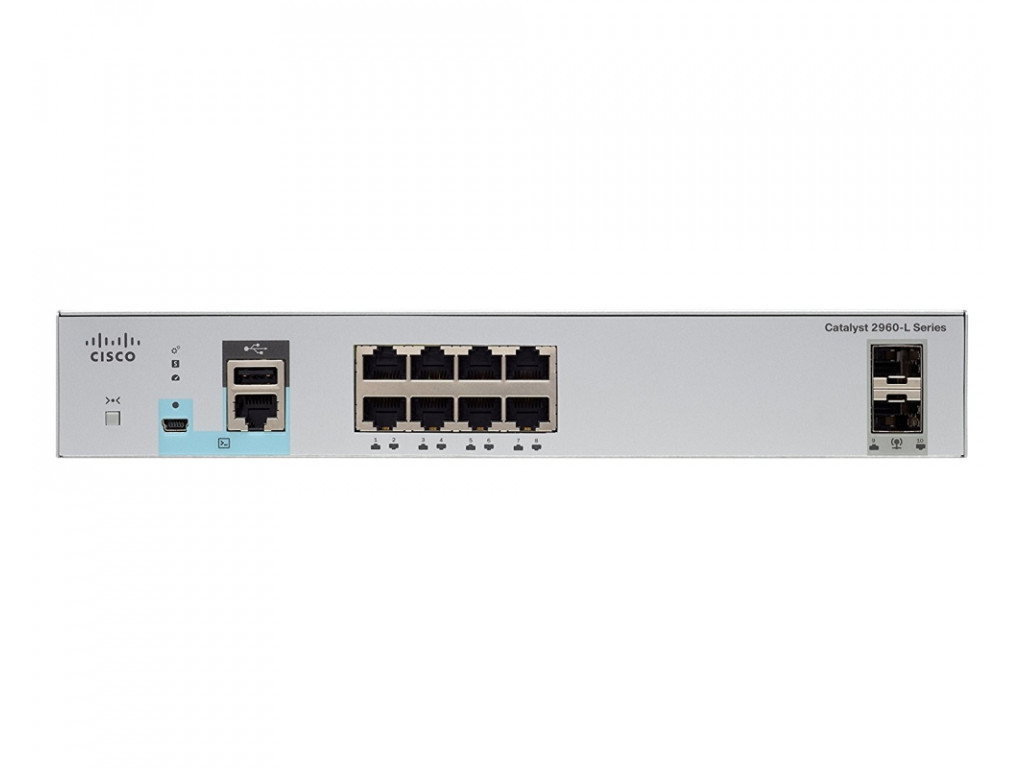

Комутатор Cisco Catalyst 2960L 8 port GigE

★★★★★ (0 ревюта)

CISCO

_модел WS-C2960L-8TS-LL

_цена 1837.6 лв.

_{код на продукта} 9079

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco Catalyst 2960L 8 port GigE, 2 x 1G SFP, LAN Lite Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

10
Основни портове, тип

8x10/100/1000Base-T
Power Over Ethernet (PoE)

No
Uplink портове

2xSFP
Свободни (10GB) слотове

No
Управление

CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP
Stackable

No
Fans

Fanless design
Захранване

Single fixed power supply, 110 to 220V AC
Routing

Layer 2 Only
Памет (Flash, RAM)

Flash memory: 256 MB; RAM: 512 MB DRAM
Капацитет за маршрутизиране/превключване, Gbps

20 Gbps
Пропускателна способност, Mpps

14.88 Mpps
MAC адреси

8000 MAC address table size
VLAN (брой, стандарти)

Maximum active VLANs: 64; VLAN IDs available: 4094; IEEE 802.1Q VLAN
QoS

Up to four egress queues and two thresholds per port supporting bandwidth control, shaping, and priority queuing so that the high priority packets are serviced ahead of other traffic; WRR scheduling and WTD congestion avoidance; 802.1p class of service
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
L3 мрежови стандарти

-
IPv6 functionality

IPv6 Ready Logo
Сигурност

Comprehensive 802.1x, Multidomain Authentication, Access Control Lists (ACLs), SSH, Kerberos, SNMPv3, Switched Port Analyzer (SPAN), TACACS+ and RADIUS authentication, MAC address notification, Multilevel security on console access, BPDU guard, STRG
Размери (Ш, Д, В), mm

268 x 215 x 44
Опция за монтаж

Desktop/Rackmount
Други

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console
