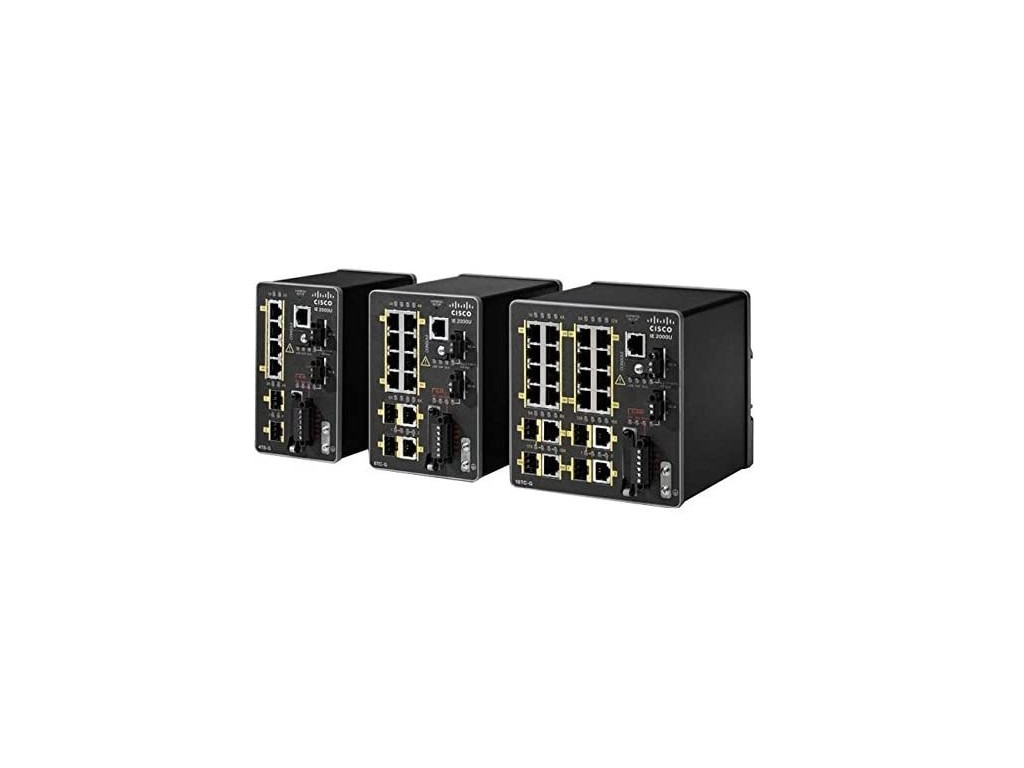

Комутатор Cisco IE2000U with 16FE Copper ports

★★★★★ (0 ревюта)

CISCO

_модел IE-2000U-16TC-G

_цена 6263.99 лв.

_{код на продукта} 9218

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000U with 16FE Copper ports, 2GE + 2FE Combo (Lan Base License) Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

20
Основни портове, тип

16x FE copper ports (RJ-45 connectors)
Power Over Ethernet (PoE)

-
Uplink портове

2x GE + 2x FE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

SNMP v2 and 3, IGMP multicast groups: 1000, SDM, CFM
Stackable

-
Fans

Convection cooled
Захранване

Redundant DC input voltage with operating range: 12-48 VDC Nominal, 9.6-60 VDC Maximum; Maximum DC input current: 0.5A at 48 VDC, 1A at 24 VDC; Power Consumption: 13-20 W
Routing

-
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 1 GB removable SD flash memory card (CG swap drive) – (128MB space available)
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

Max. 5.66Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN, Protected port/private VLAN
QoS

Advanced QoS capabilities to support mission-critical substation applications such as SCADA and IEC 61850 Generic Object Oriented Substation Events (GOOSE) messaging
Сигурност

802.1x, Dynamic ARP Inspection, DHCP Snooping, ACL, Port security, UNI/ENI, Spanning Tree Protocol security, Storm control, Secure connectivity: SSH/SSL/SCP, RADIUS/TACACS+, SNMPv3 crypto, OBFL
Мрежови стандарти

IEEE: 802.1s, 802.1w, 802.1x, 802.3ad, 802.3ah, 802.1ag, 802.3x full duplex, 802.1D Spanning Tree Protocol, 802.1p CoS, 802.3, 802.3u, 802.3ab, 802.3z, IEEE 1588v2, IEC-62439-3 PRP, IPv6: MLD Snooping v1/2, SNMP v1, 2, and 3
Протоколи за индустриална автоматизация

IEC-61850-3, IEEE 1613, IEEE 1588
Работна температура

-40C to +75C
Размери (Ш, Д, В), mm

127 x 134 x 130 mm
Опция за монтаж

DIN rail
Други

Lan Base License, Parallel Redundancy Protocol (PRP)
