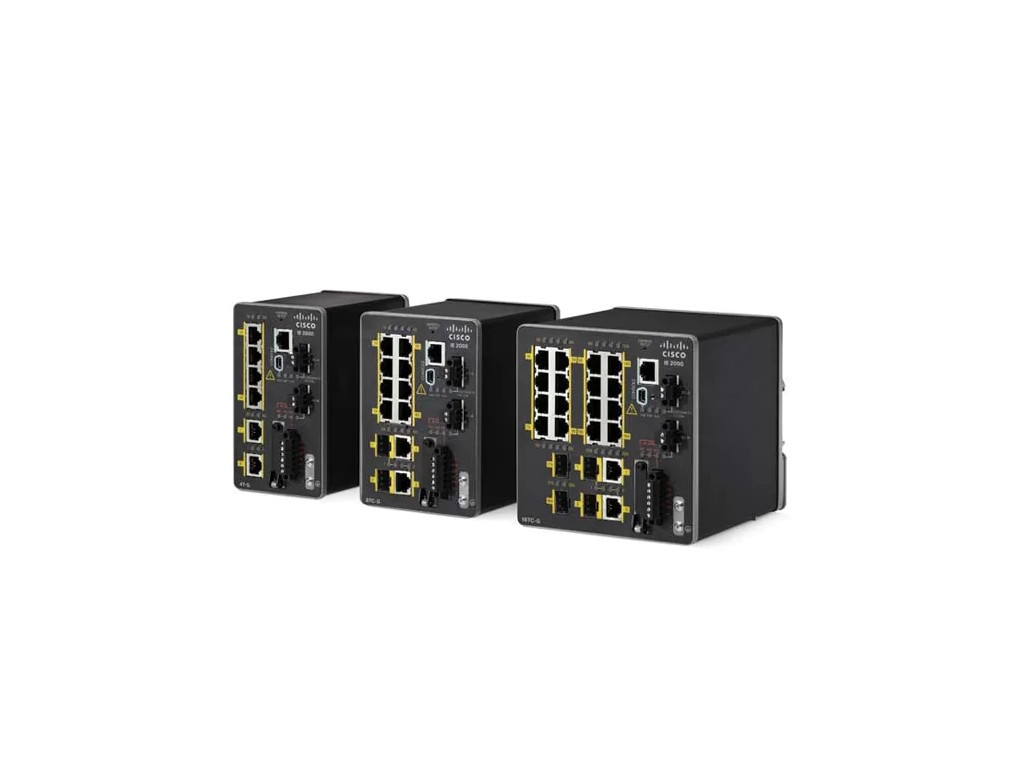

Комутатор Cisco IE2000 with 8FE Copper ports and 2FE Combo (Lan Lite License)

★★★★★ (0 ревюта)

CISCO

_модел IE-2000-8TC-L

_цена 2735.25 лв.

_{код на продукта} 9199

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000 with 8FE Copper ports and 2FE Combo (Lan Lite License) Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

10
Основни портове, тип

8x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)

-
Uplink портове

2x FE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Stackable

-
Fans

-
Захранване

External Dual-input DC power supply, Power consumption: 9.5-15 W)
Routing

-
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN
Сигурност

802.1x, port security, SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Мрежови стандарти

IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация

EtherNet/IP, Profinet v2
Работна температура

-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm

91.4 x 115 x 130 mm
Опция за монтаж

DIN rail
Други

Software license - LAN Lite; Type of possible upgrade: 3; Mini-USB connector; Multicast: IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier, Layer 2 switching
