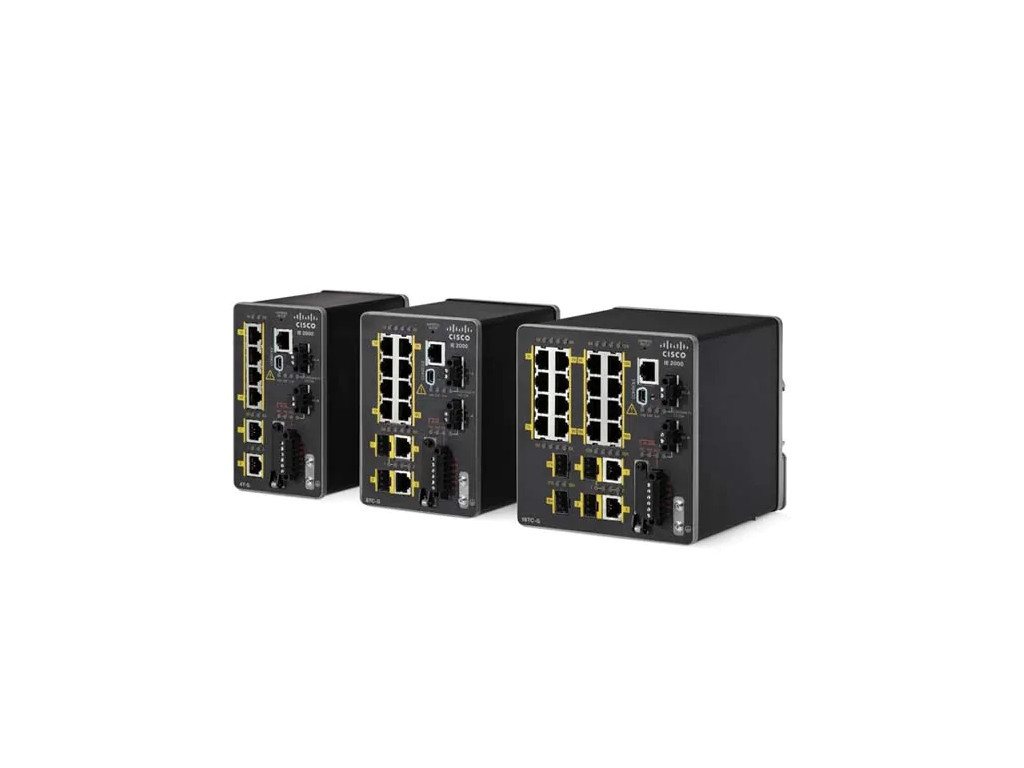

Комутатор Cisco IE2000 with 8FE Copper ports and 2GE uplinks (Lan Base License)

★★★★★ (0 ревюта)

CISCO

_модел IE-2000-8TC-G-B

_цена 3715.44 лв.

_{код на продукта} 9202

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000 with 8FE Copper ports and 2GE uplinks (Lan Base License) Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

10
Основни портове, тип

8x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)

-
Uplink портове

2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Stackable

-
Fans

-
Захранване

External Dual-input DC power supply, Power consumption: 9.5-15 W)
Routing

Layer 3 routing: IPv4 and IPv6 (IPv4 routing: 3500 routes, IPv6 routing: 1750 routes), IPv4 static routing, IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN; Voice VLAN
QoS

IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Сигурност

802.1x, IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Мрежови стандарти

IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация

EtherNet/IP, Profinet v2
Работна температура

-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm

74.9 x 115 x 130 mm
Опция за монтаж

DIN rail
Други

Software license - LAN Base; Type of possible upgrade: 1; Mini-USB connector;Layer 2 switching VTPv3, EtherChannel, Voice VLAN, Flexlink
