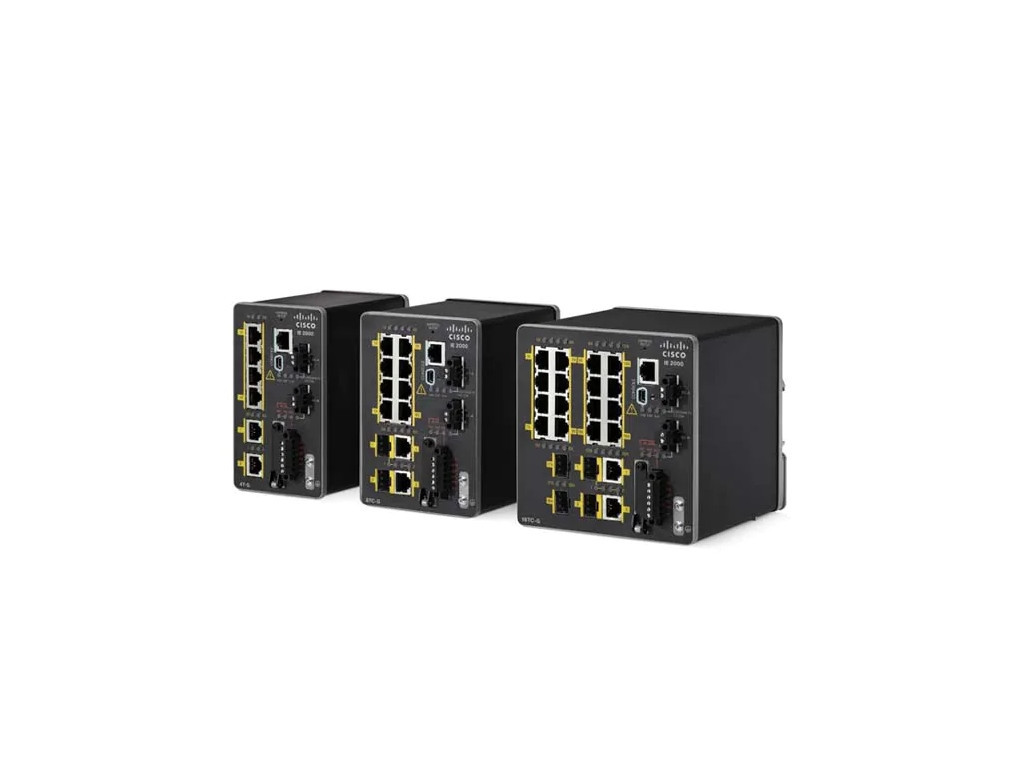

Комутатор Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Enhanced Lan Base License) - Conformal coating

★★★★★ (0 ревюта)

CISCO

_модел IE-2000-16PTC-G-NX

_цена 9596.67 лв.

_{код на продукта} 9212

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco IE2000 with 16FE Copper (4 PoE+) and 2GE uplinks (Enhanced Lan Base License) - Conformal coating Виж характеристиките

Характеристики

Суич, тип

Fixed port
Общ брой портове

18
Основни портове, тип

16x FE (4 PoE+) (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
Power Over Ethernet (PoE)

4x PoE+; PoE (IEEE 802.af) and PoE+ (802.3at)
Uplink портове

2x GE Combo ports (SFP or RJ45)
Свободни (10GB) слотове

-
Управление

Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Stackable

-
Fans

-
Захранване

External Dual-input DC power supply, Power consumption: 9.5-15 W
Routing

Layer 3 routing: IPv4 and IPv6 (IPv4 routing: 3500 routes, IPv6 routing: 1750 routes), IPv4 static routing, IPv6 routing: IPv6 host support, HTTP over IPv6, SNMP over IPv6
Памет (Flash, RAM)

Egress buffer: 2 MB; 256 MB DRAM with ECC memory; 64 MB on-board flash memory; Optional: 1GB removable SD flash memory card
Капацитет за маршрутизиране/превключване, Gbps

Maximum Forwarding Bandwidth 3.8 Gbps; Maximum Switching Bandwidth 7.6 Gbps
Пропускателна способност, Mpps

5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
MAC адреси

Unicast MAC addresses: 8000
VLAN (брой, стандарти)

Maximum virtual LANs (VLANs): 1005; IEEE 802.1q VLAN; Voice VLAN
QoS

IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Сигурност

IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Мрежови стандарти

IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s, 802.1w, 802.1AB LLDP, 802.3ad, 802.3ah, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z, 1588v2
Протоколи за индустриална автоматизация

IEEE 1588 PTPv2
Работна температура

-40C to +70C (vented enclosure - 40 LFM Air Flow); -40C to +60C (sealed enclosure . 0 LFM Air Flow); -34C to +75C (fan or blower-equipped enclosure . 200 LFM Air Flow); -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
Размери (Ш, Д, В), mm

127 x 134 x 130 mm
Опция за монтаж

DIN rail
Други

Conformal coating SKUs available, Enhanced Lan Base License: LAN Base to IP Lite Cisco IOS, Enhanced LAN Base to IP Lite Cisco IOS; L2NAT; Mini-USB connector; Layer 2 switching with 1:1 static Network Address Translation (NAT)
