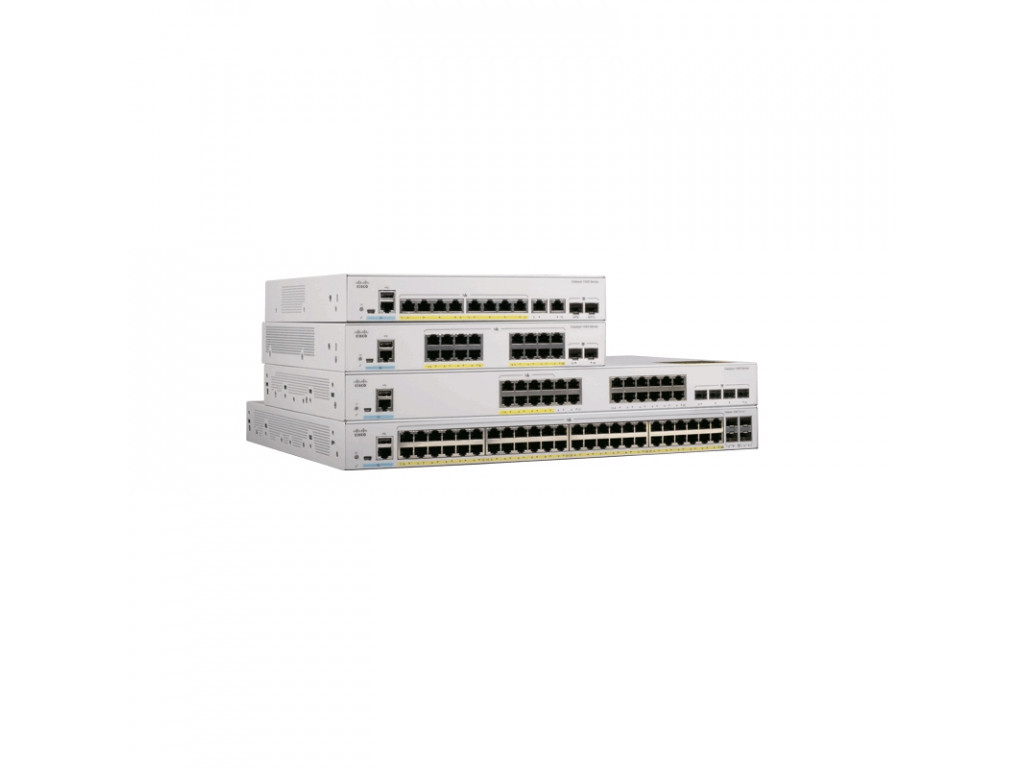

Комутатор Cisco Catalyst 1000 8port GE

★★★★★ (0 ревюта)

CISCO

_модел C1000-8FP-E-2G-L

_цена 1074.14 лв.

_{код на продукта} 9092

_{наличност} при доставчик

Добави в количката

Описание на продукта

Cisco Catalyst 1000 8port GE, Full POE, Ext PS, 2x1G SFP Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

8
Основни портове, тип

10/100/1000Base-T
Power Over Ethernet (PoE)

Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 4 ports or 15W for 8 ports; PoE power budget: 120W
Uplink портове

2x SFP/ RJ-45 combo
Свободни (10GB) слотове

-
Управление

Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
Stackable

-
Fans

Compact fanless
Захранване

External (Use the supplied AC power cord to connect the AC power connector to an AC power outlet)
Routing

Static
Памет (Flash, RAM)

512MB DRAM, 256 MB Flash memory
Капацитет за маршрутизиране/превключване, Gbps

10/20 Gbps (Forwarding/Switching)
Пропускателна способност, Mpps

14.88 Mpps
MAC адреси

15 360
VLAN (брой, стандарти)

Maximum active: 256; IDs available: 4094
QoS

Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
L2 мрежови стандарти

802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
L3 мрежови стандарти

-
IPv6 functionality

IPv6 routing, Access Control Lists (ACLS)
Сигурност

802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
Размери (Ш, Д, В), mm

268.2 x 184.9 x 43.9
Опция за монтаж

Rackmount
Други

USB mini-B port, USB-A port for storage and Bluetooth console
