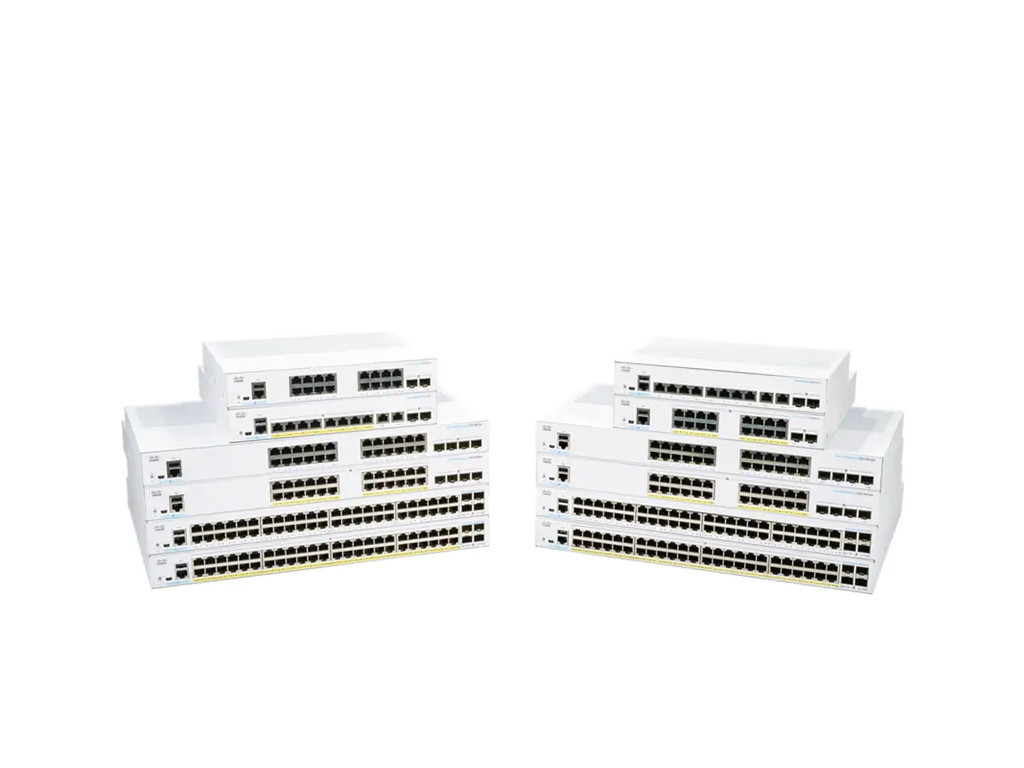

Комутатор Cisco CBS350 Managed 12-port 10GE

★★★★★ (0 ревюта)

CISCO

_модел CBS350-12XT-EU

_цена 3211.71 лв.

_{код на продукта} 24193

_{наличност} на склад

Добави в количката

Описание на продукта

Cisco CBS350 Managed 12-port 10GE, 2x10G SFP+ Shared Виж характеристиките

Характеристики

Суич, тип

Fixed Port, Managed
Общ брой портове

12
Основни портове, тип

10x10GBase-T
Power Over Ethernet (PoE)

-
Uplink портове

2x10 Gigabit SFP+ (combo with 2 x 10G copper ports)
Свободни (10GB) слотове

-
Управление

1x GE OOB management; Web user interface; Cisco Business Dashboard; CLI; SNMP
Stackable

Up to 4 units in a stack. Up to 192 ports managed as a single system with hardware failover
Fans

2
Захранване

Internal (100-240V, 50-60 Hz)
Routing

Layer 3 RIP
Памет (Flash, RAM)

Flash: 256 MB; CPU memory: 512 MB, Packet buffer: 3 MB
Капацитет за маршрутизиране/превключване, Gbps

240 Gbps
Пропускателна способност, Mpps

178.56 Mpps
MAC адреси

16K
VLAN (брой, стандарти)

Support for up to 4094 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs; MAC/protocol-based VLAN; IP subnet-based/Management VLAN; Private VLAN; PVE; Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS server; Voice/Multicast TV VLAN
QoS

Priority levels: 8 hardware queues; Scheduling: Strict priority and Weighted Round-Robin (WRR); Class of service: Port based; 802.1p VLAN priority-based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based; DiffServ; ACLs, trusted QoS
L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, RFC
L3 мрежови стандарти

Support for Routing Information Protocol version 2 for dynamic routing
IPv6 functionality

IPv6 host mode; IPv6 over Ethernet; Dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); IPv6 stateless address autoconfiguration; MTU discovery; DAD; ICMP v6; DHCPv6 stateful client; ISATAP
Сигурност

SSH v1/v2; SSL; IEEE 802.1X; Web-based authentication; IP Source Guard; Dynamic ARP Inspection (DAI); IP/MAC/Port Binding (IPMB); Secure Core Technology (SCT); Secure Sensitive Data (SSD); Port security; RADIUS/TACACS+; RADIUS accounting; Storm control
Размери (Ш, Д, В), mm

440 x 203 x 44 mm
Опция за монтаж

Rackmount
Други

Cisco standard RJ45 console port; USB Type-A slot on the front panel of the switch for easy file and image management
