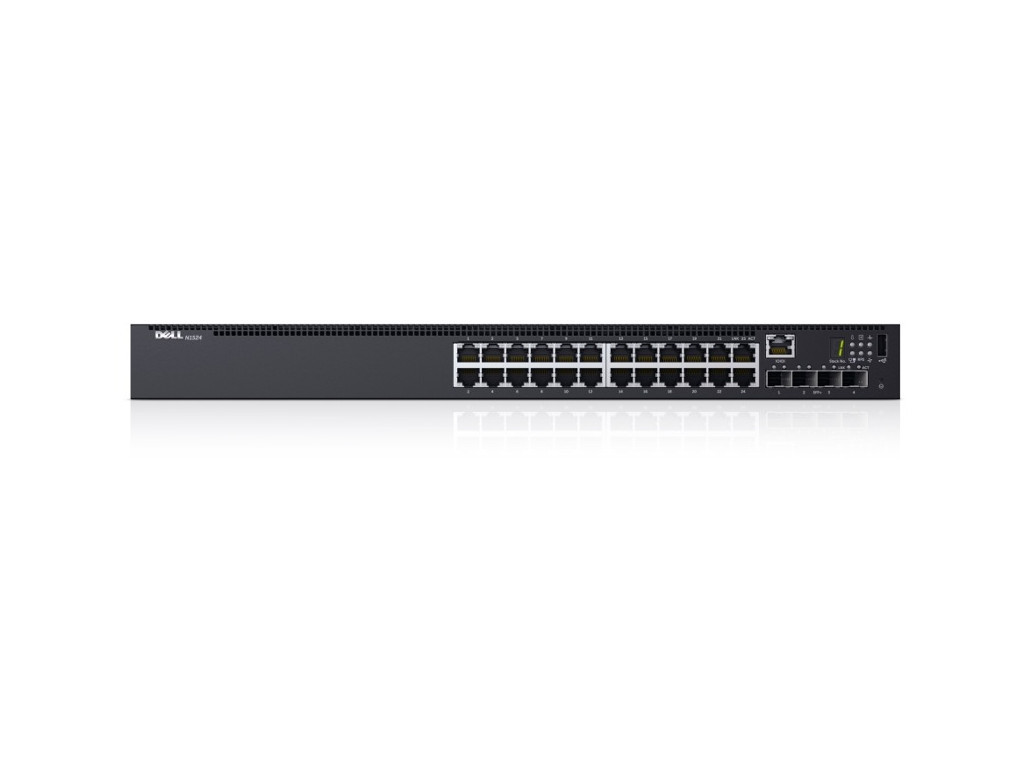

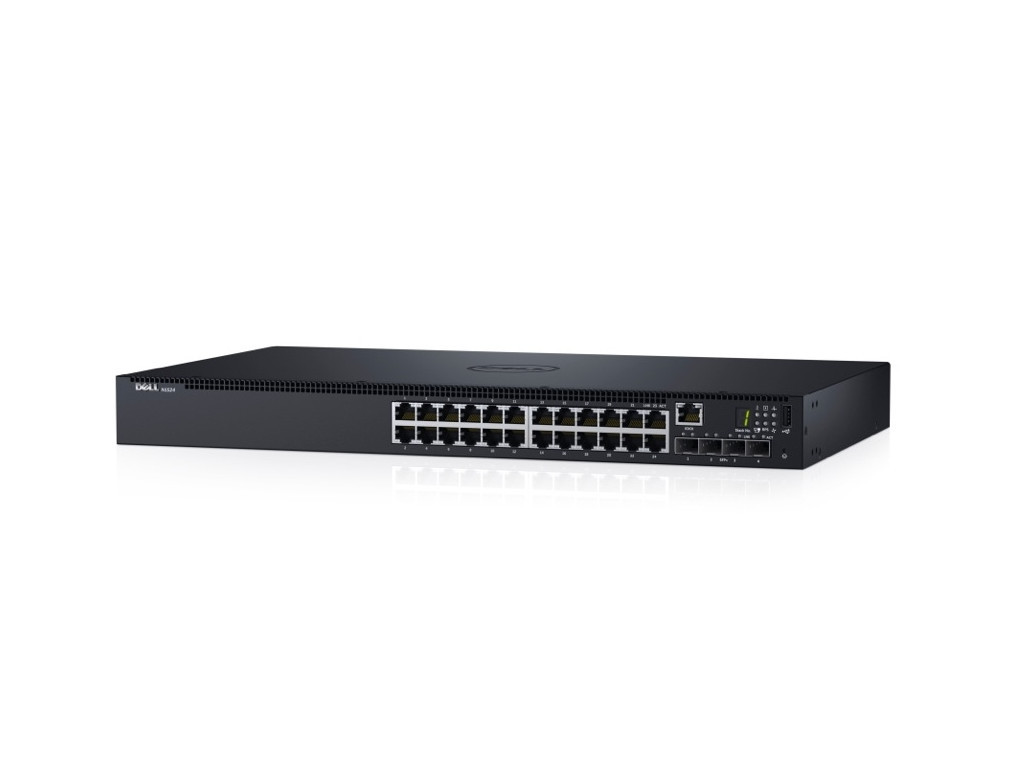

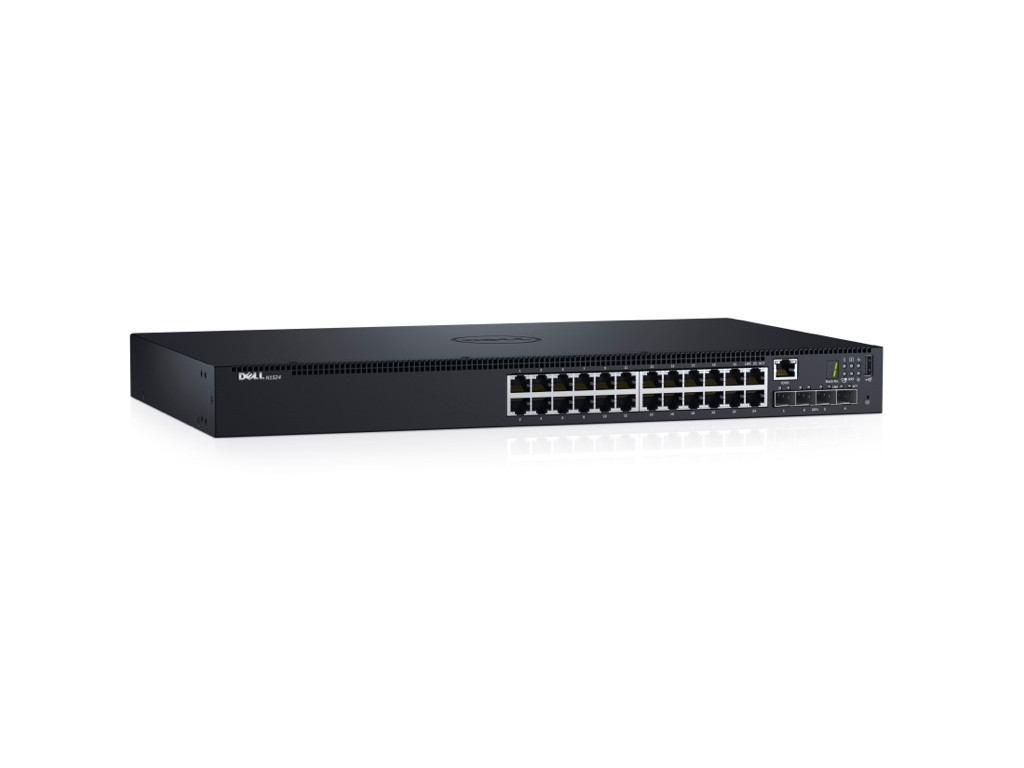

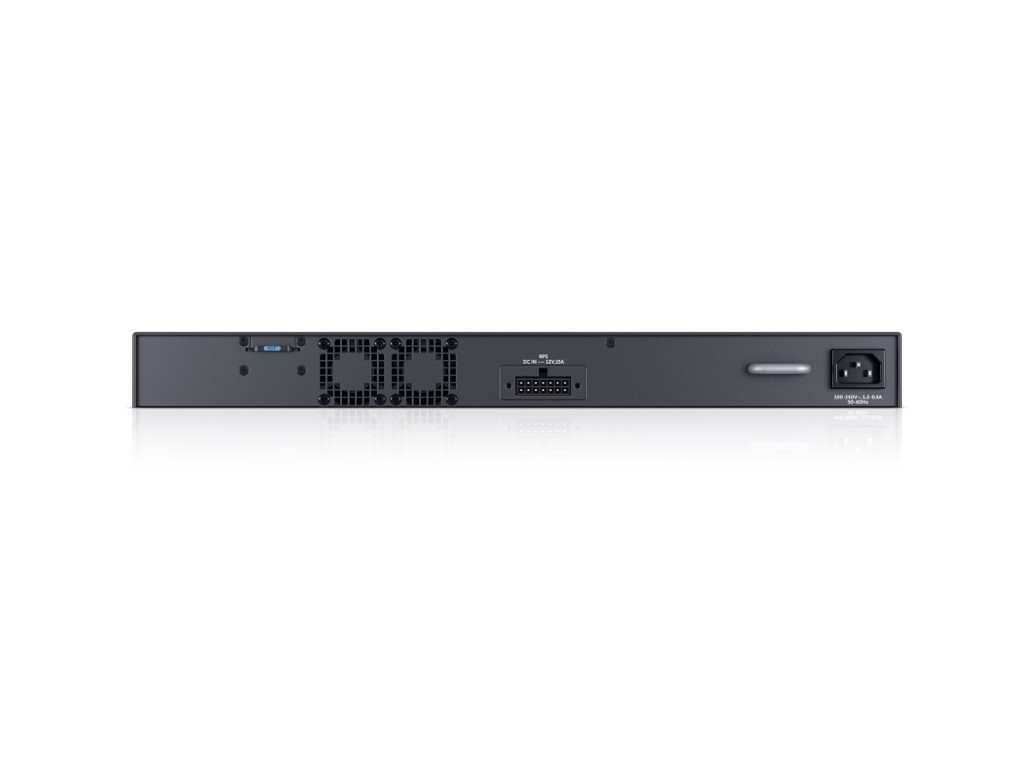

Комутатор Dell Networking N1524

★★★★★ (0 ревюта)

DELL

_модел 210-AEVX

_цена 3525.3 лв.

_{код на продукта} 24179

_{наличност} при доставчик

Добави в количката

Описание на продукта

Dell Networking N1524, 24x 1GbE + 4x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, Acp DNN1524, Cable, SFP+ to SFP+, 10GbE, Copper Twinax DAC, 0.5 Meter, Lifetime Limited Hardware Warranty, 2Yr ProSupport and Next Business Day Onsite Service Виж характеристиките

Характеристики

Суич, тип

Fixed Port
Общ брой портове

28
Основни портове, тип

24x10/100/1000Base-T
Power Over Ethernet (PoE)

No
Uplink портове

4x 10GbE SFP+
Свободни (10GB) слотове

No
Управление

Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.
Stackable

Yes (2 10GbE can be used as stacking ports)
Fans

Redundant variable speed fans
Захранване

1 integrated 40W PSU
Routing

Line-rate Layer 3 routing
Памет (Flash, RAM)

Flash memory: 256MB, Packet buffer memory: 1.5MB, CPU memory: 1GB
Капацитет за маршрутизиране/превключване, Gbps

128 Gbps
Пропускателна способност, Mpps

128 Mpps
MAC адреси

16000 MAC address table size
VLAN (брой, стандарти)

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP; Private VLAN extensions and Private VLAN Edge support; 128 VLAN routing interfaces; 512 VLANs supported; Protocol-based VLANs; Max VLAN interfaces with ACLs applied: 24
QoS

8 priority queues per port, Broadcast storm control, DiffServ
L2 мрежови стандарти

IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
L3 мрежови стандарти

Static routing and Routing Information ProtocoL (RIPv1, RIPv2); 128 RIP routing interfaces
IPv6 functionality

General IPv6 protocols are supported
Сигурност

AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
Размери (Ш, Д, В), mm

440 x 257 x 43.2 mm
Опция за монтаж

Rackmount
Други

RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive
