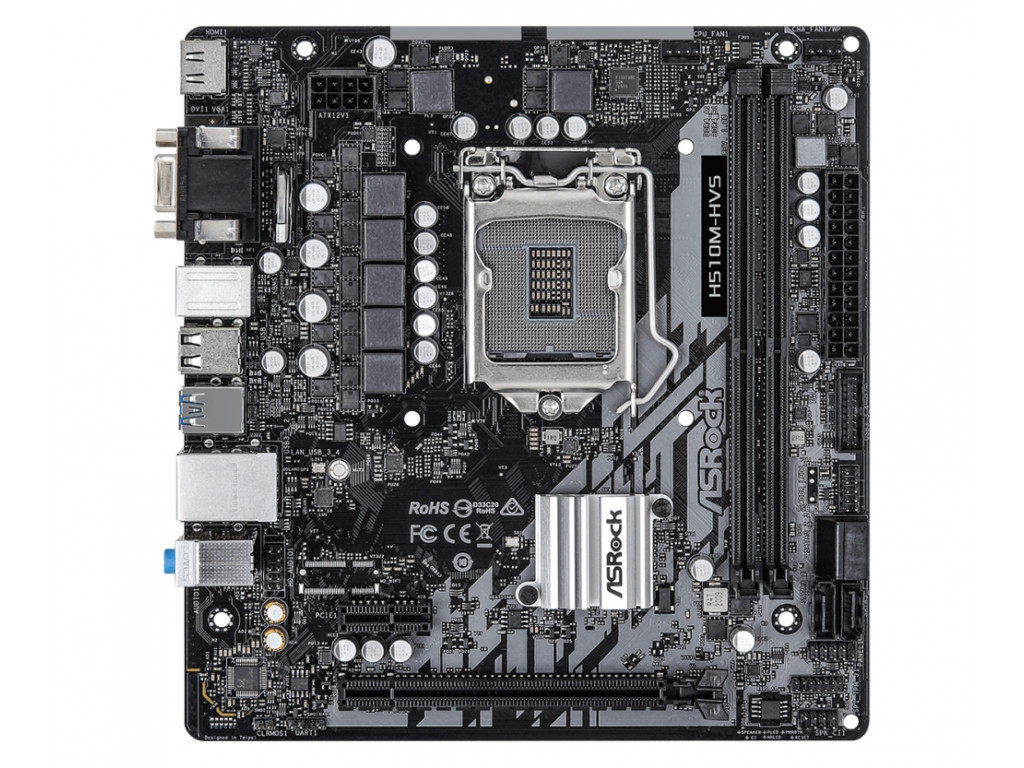

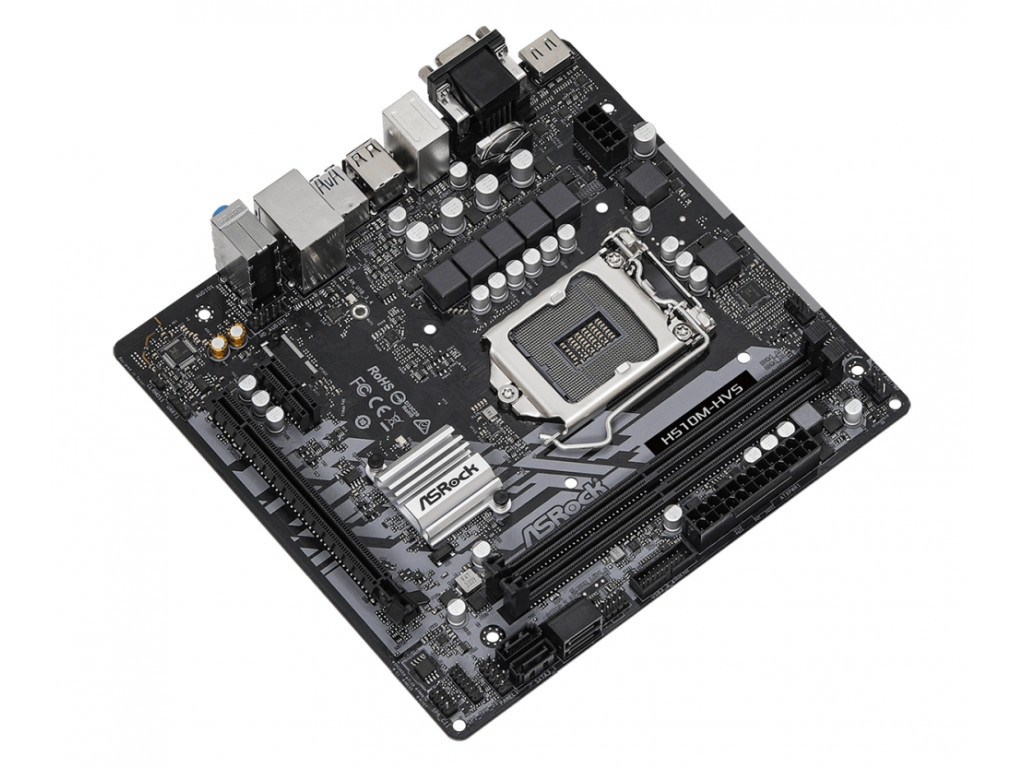

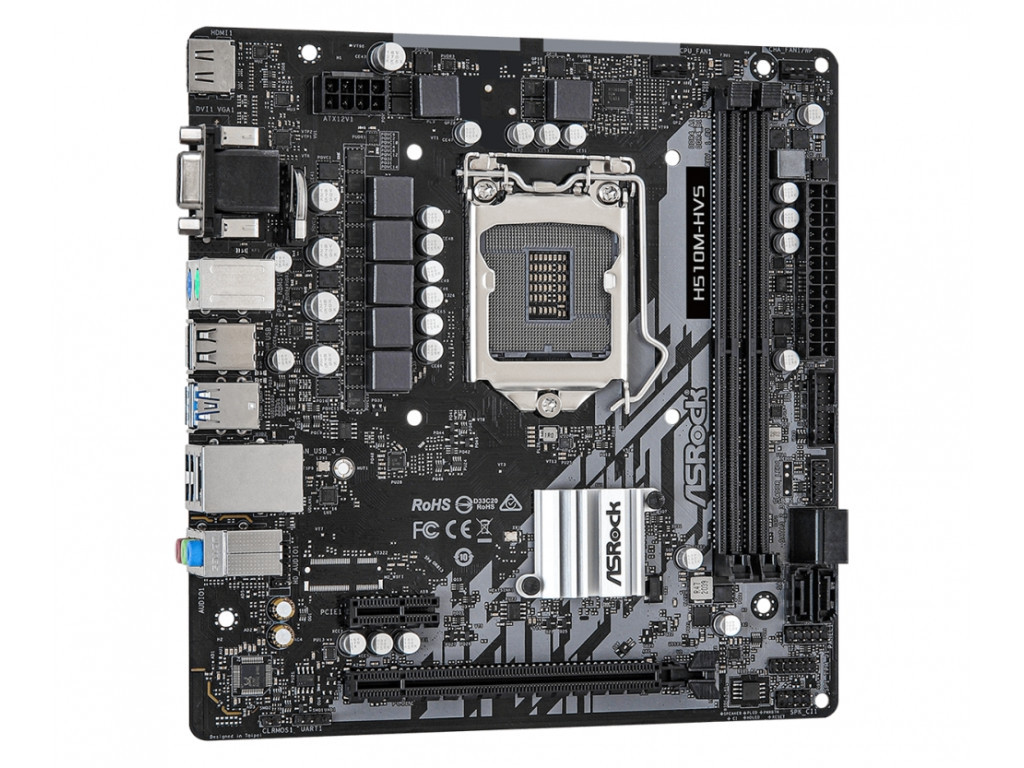

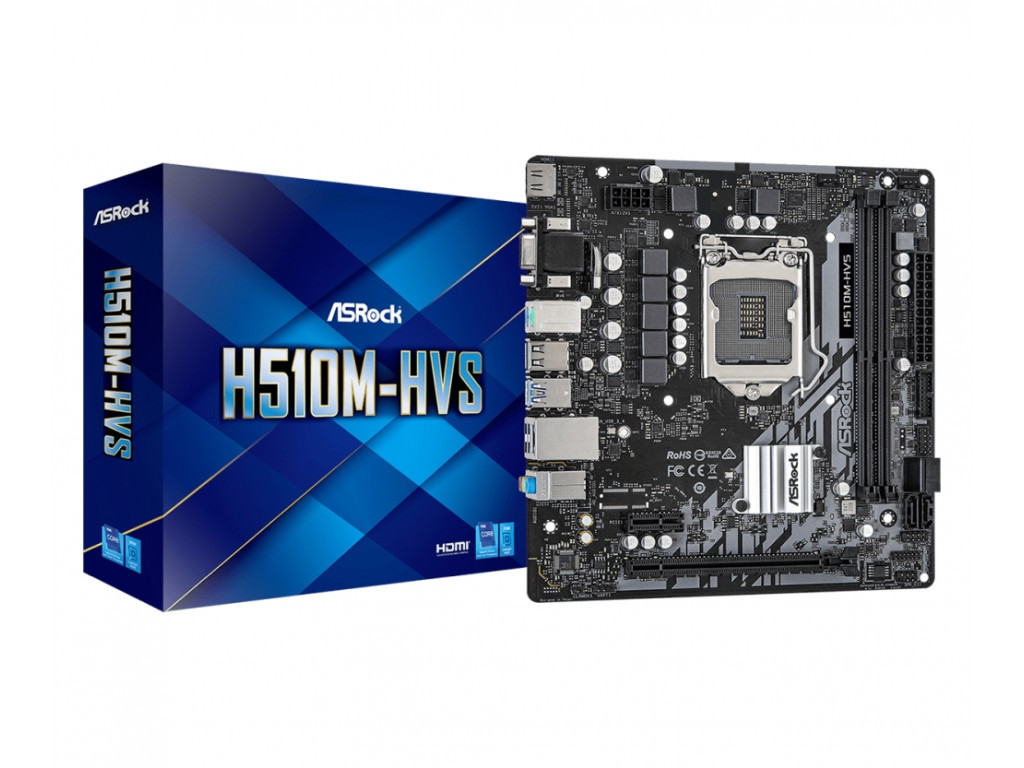

Дънна платка Asrock H510M-HVS
ASROCK
модел 90-MXBG30-A0UAYZ
цена
138.18 лв.
код на продукта 5354
гаранция 36 месеца
тегло 2.404
наличност при доставчик
Описание на продукта
Asrock H510M-HVS Виж характеристиките
- ✓ Модел: Asrock H510M-HVS
- ✓ За: за специализирана употреба
- ✓ Група: ASROCK компоненти за компютри
- ✓ Подгрупа: Дънни платки
- ✓ Тегло: 2.404
- 4710483934230
- СерияHVS
- ПроцесорSupports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200); 5 Power Phase design; Supports Intel Turbo Boost Max 3.0 Technology
- ЧипсетIntel H510
- BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment
- Памет, слотове2x DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology; Max. capacity of system memory: 64GB; Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory; Supports ECC UDIMM memory modules
- Аудио7.1 CH HD Audio (Realtek ALC897 Audio Codec); Supports Surge Protection
- МрежаPCIE x1 Gigabit LAN 10/100/1000 Mb/s; 1x Realtek RTL8111H; Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
- Конектори1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 1x 24 pin ATX and 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 1x USB 2.0 Header; 1x USB 3.2 Gen1 Header; 1x CPU Fan Connector 4-pin(max 1A (12W))
- Слотове11th Gen Intel: 1x PCI Express 4.0 x16 Slot; 10th Gen Intel: 1x PCI Express 3.0 x16 Slot; 1x PCI Express 3.0 x1 Slot

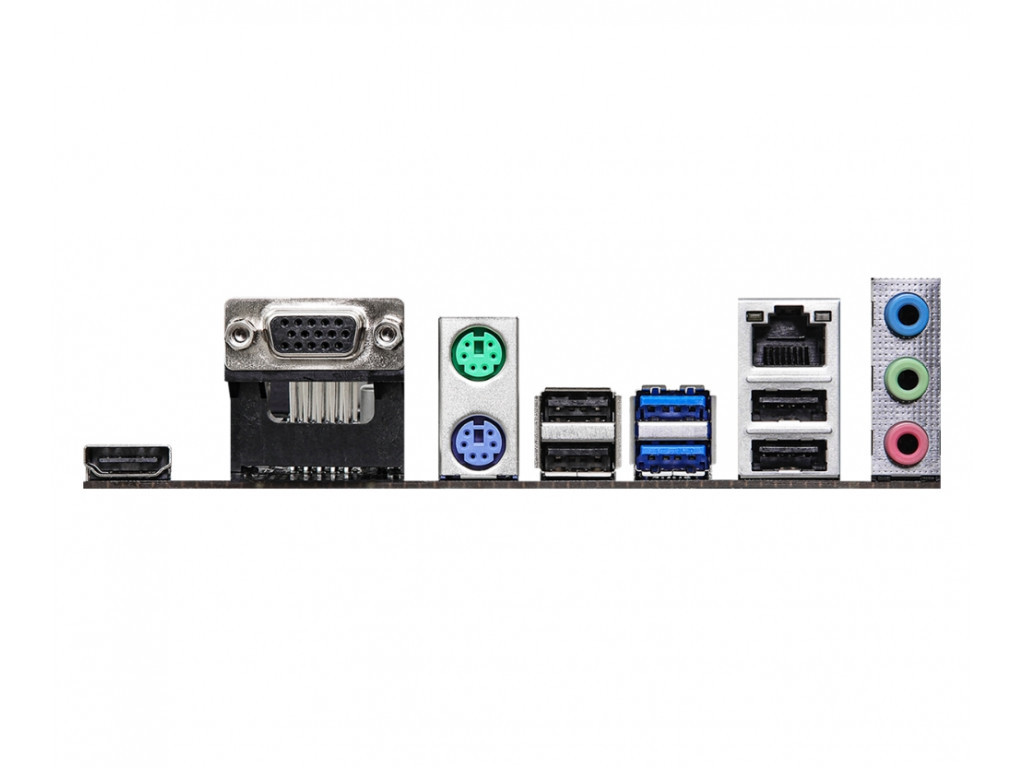

- Интерфейс1x PS/2 Keyboard Port; 1x PS/2 Mouse Port; 1x D-Sub Port; 1x HDMI Port; 2x USB 3.2 Gen1 Ports; 4x USB 2.0 Ports; 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone
- СофтуерASRock Motherboard Utility (A-Tuning), ASRock XFast LAN
- Операционна системаMicrosoft Windows 10 64-bit
- Форм-факторMicro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm; Solid Capacitor design
- Специални функцииASRock Super Alloy, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
