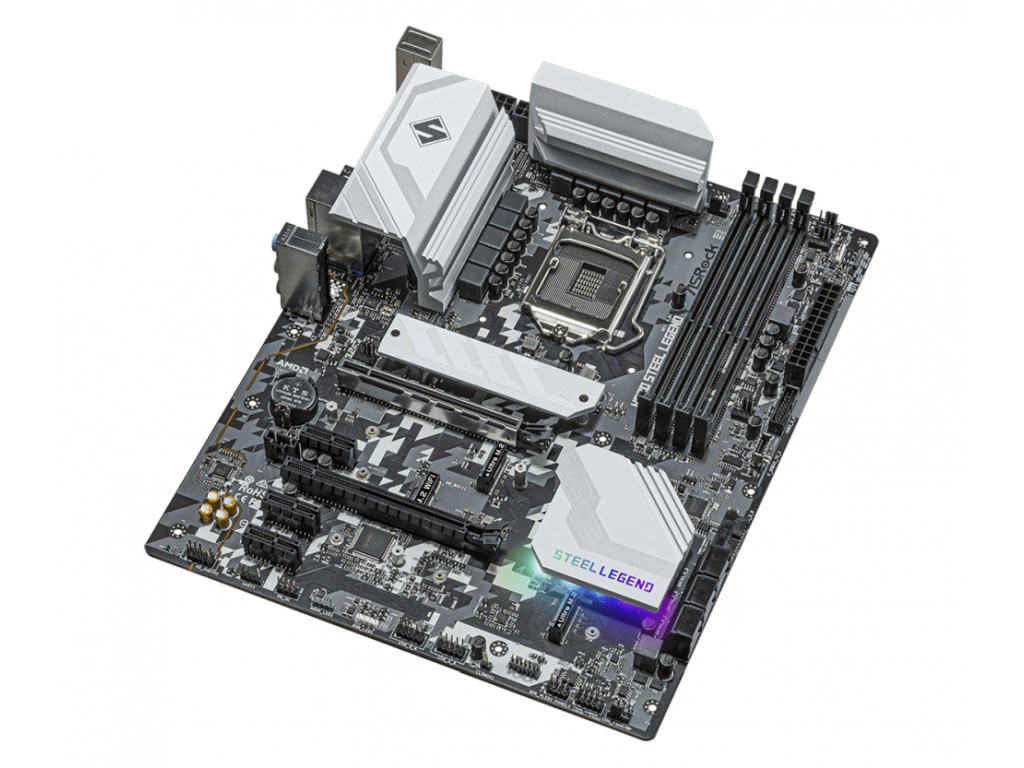

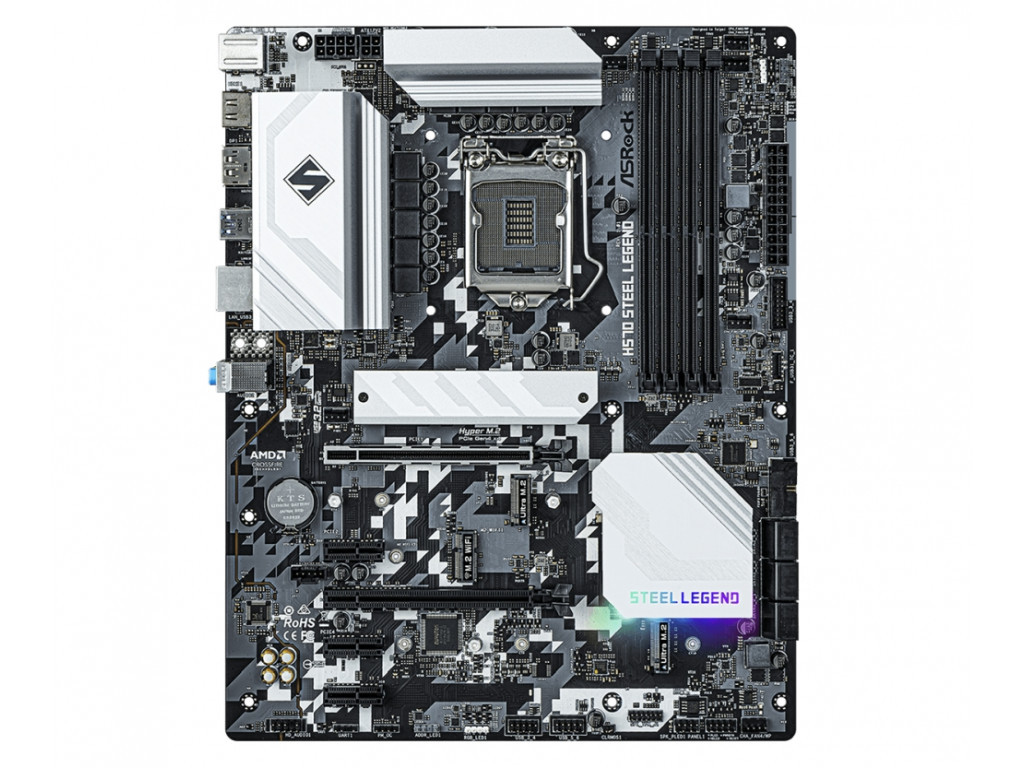

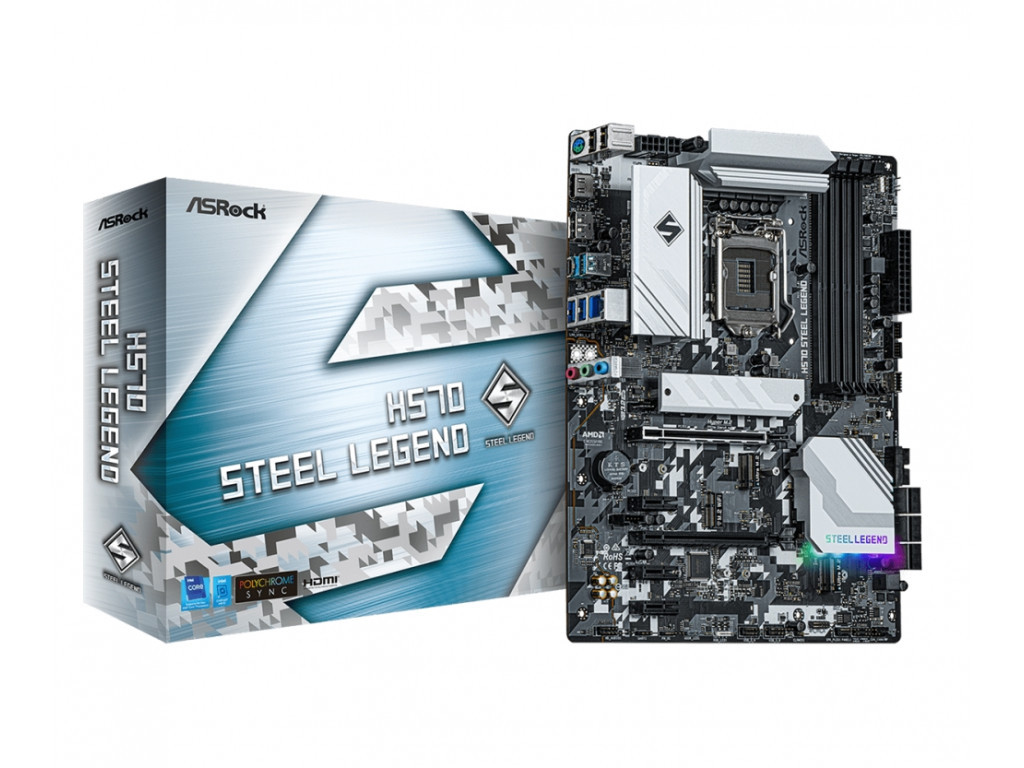

Дънна платка Asrock H570 Steel Legend
ASROCK
модел 90-MXBFY0-A0UAYZ
цена
332.97 лв.
код на продукта 5347
гаранция 36 месеца
тегло 2.404
наличност не е в наличност
Описание на продукта
Asrock H570 Steel Legend Виж характеристиките
- ✓ Модел: Asrock H570 Steel Legend
- ✓ За: за специализирана употреба
- ✓ Група: ASROCK компоненти за компютри
- ✓ Подгрупа: Дънни платки
- ✓ Тегло: 2.404
- 4710483934100
- СерияSteel Legend
- ПроцесорSupports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200); Digi Power design; 8 Power Phase design
- ЧипсетIntel H570
- BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multi-adjustment
- Памет, слотове4 x DDR4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology; Supports ECC UDIMM memory modules (operate in non-ECC mode); Supports Intel Extreme Memory Profile (XMP) 2.0
- Аудио7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection, Nahimic Audio
- Мрежа2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE; Visual User Friendly UI
- Конектори1x SPI TPM Header; 1x Power LED and Speaker Header; 2x RGB LED Headers; 1x 24 pin ATX, 1x 8 pin 12V, 1x 4 pin 12V Power connector; 1x Front Panel Audio Conn.; 2x USB 2.0 Headers; 2x USB 3.2 Gen1 Headers; 1x FrontPanel Type-C USB 3.2 Gen2x2 Header (20Gb/s)
- Слотове11th Gen: 2x PCI Express x16 Slots(PCIE1/PCIE3: single at Gen4x16(PCIE1), dual at Gen4x16(PCIE1)/Gen3x4(PCIE3)); 10th Gen: 2x PCI Express x16 Slots(PCIE1/PCIE3: single at Gen3x16(PCIE1), dual at Gen3x16(PCIE1)/Gen3x4(PCIE3)); 3x PCI Express 3.0 x1 Slots
- M.2 слот1x Hyper M.2 Socket (M2_1), M Key type 2260/2280 M.2 PCIe module up to Gen4x4(64Gb/s)(Only 11th Gen); 1x Ultra M.2 Socket(M2_2), M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCIe module up to Gen3 x4 (32 Gb/s); 1xUltra M.2 Socket(M2_3), M.2 SATA3

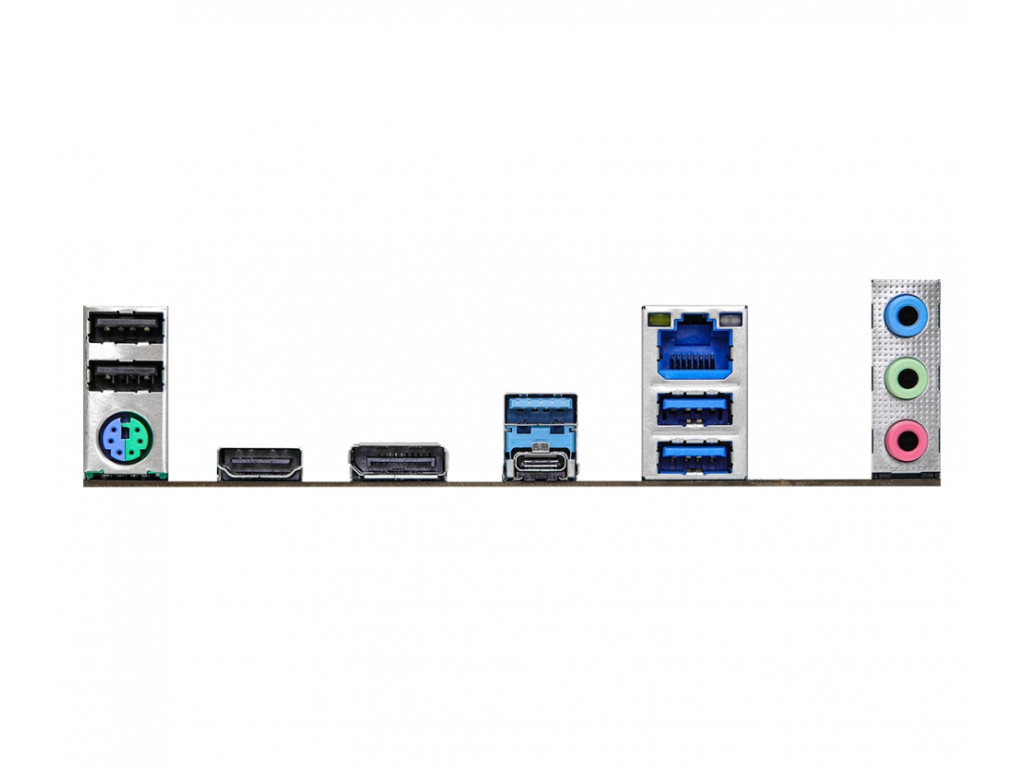

- Интерфейс1x PS/2 Mouse/Keyboard Port; 1x HDMI Port; 1x DisplayPort 1.4; 1x USB 3.2 Gen2 Type-A Port (10 Gb/s); 1x USB 3.2 Gen2 Type-C Port (10 Gb/s)2x USB 3.2 Gen1 Ports; 2x USB 2.0 Ports; 1x RJ-45 LAN Port with LED; HD Audio Jacks: Line in/Front Speaker/Mic
- СофтуерASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
- Операционна системаMicrosoft Windows 10 64-bit
- Форм-факторATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Специални функцииASRock USB 3.2 Gen2, ASRock Super Alloy, 2.5G LAN, ASRock Steel Slot, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
