Дънна платка Asrock H510M-HDV/M.2
ASROCK
модел 90-MXBFT0-A0UAYZ
цена
148.6 лв.
код на продукта 5356
гаранция 36 месеца
тегло 2.404
наличност не е в наличност
Описание на продукта
Asrock H510M-HDV/M.2 Виж характеристиките
- ✓ Модел: Asrock H510M-HDV/M.2
- ✓ За: за специализирана употреба
- ✓ Група: ASROCK компоненти за компютри
- ✓ Подгрупа: Дънни платки
- ✓ Тегло: 2.404
- 4710483934247
- СерияHDV
- ПроцесорSupports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200); 5 Power Phase design; Supports Intel Turbo Boost Max 3.0 Technology
- ЧипсетIntel H510
- BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support; ACPI 6.0 Compliant wake up events; SMBIOS 2.7 Support; CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
- Памет, слотове2x DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology; Max. capacity of system memory: 64GB; Supports Intel Extreme Memory Profile (XMP) 2.0; Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC;Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Аудио7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection
- МрежаGigabit LAN 10/100/1000 Mb/s; Giga PHY Intel I219V; Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
- Конектори1x COM Port Header; 1x SPI TPM Header; 1x Chassis Intrusion and Speaker Header; 1x 24 pin ATX and 1x 8 pin 12V Power Connector; 1x Front Panel Audio Connector; 1x USB 2.0 Header; 1x USB 3.2 Gen1 Header; 1x CPU Fan Connector(4-pin) max.12W
- Слотове11th Gen Intel: 1x PCI Express 4.0 x16 Slot; 10th Gen Intel: 1x PCI Express 3.0 x16 Slot; 1x PCI Express 3.0 x1 Slot
- M.2 слот1x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

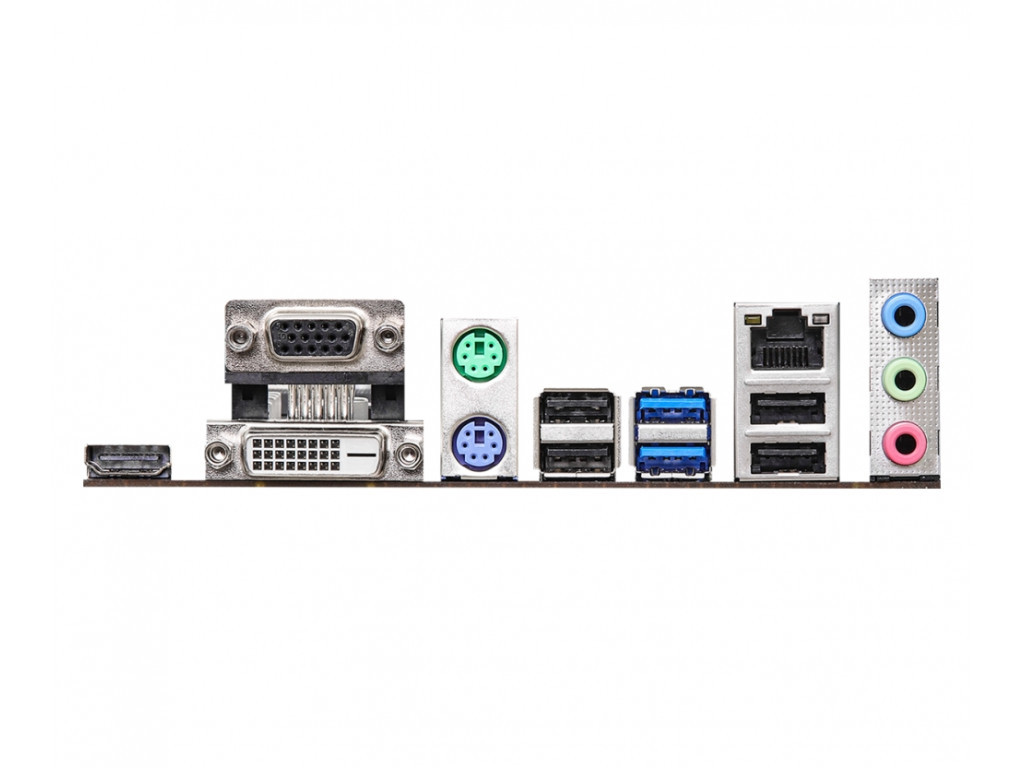

- Интерфейс1x PS/2 Mouse, 1x PS/2 Keyboard Port; 1x D-Sub Port; 1x DVI-D Port; 1x HDMI Port; 4x USB 2.0 Ports (Supports ESD Protection); 2x USB 3.2 Gen1 Ports (Supports ESD Protection); 1x RJ-45 LAN Port with LED; HD Audio Jacks: Line in/Front Speaker/Microphone
- СофтуерASRock Motherboard Utility (A-Tuning); ASRock XFast LAN
- Операционна системаMicrosoft Windows 10 64-bit
- Форм-факторMicro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm; Solid Capacitor design
- Специални функцииASRock Super Alloy; ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3); ASRock Full Spike Protection (for all USB, Audio, LAN Ports); ASRock Live Update & APP Shop
- ДругиCertifications: FCC, CE; ErP/EuP ready (ErP/EuP ready power supply is required)
