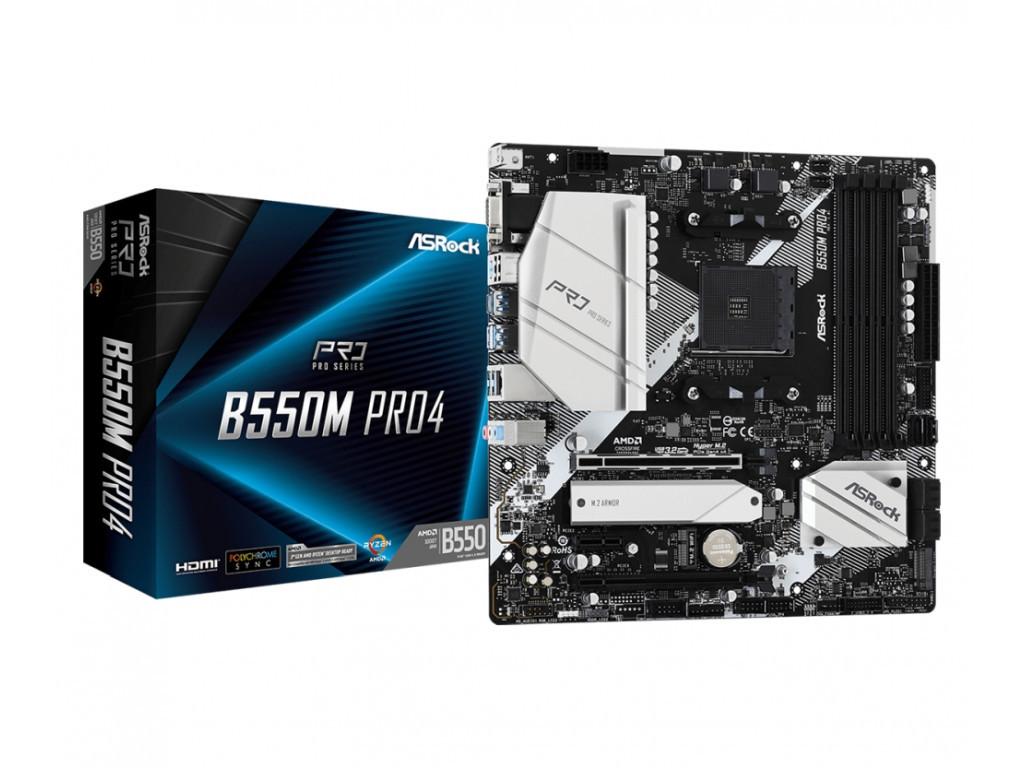

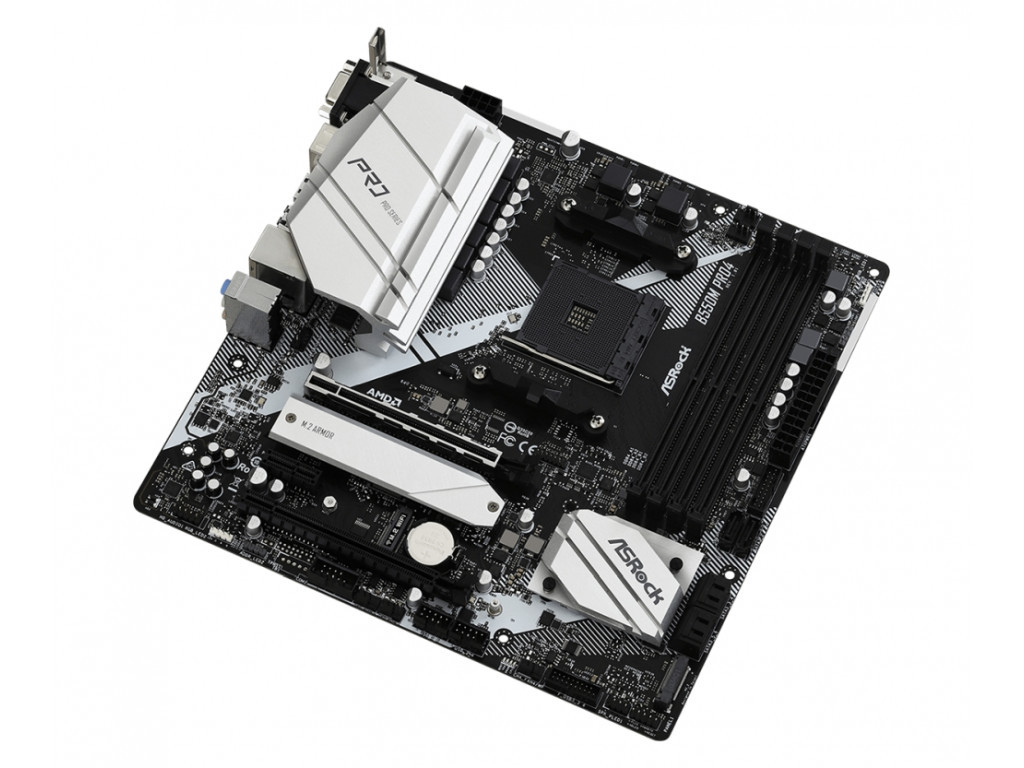

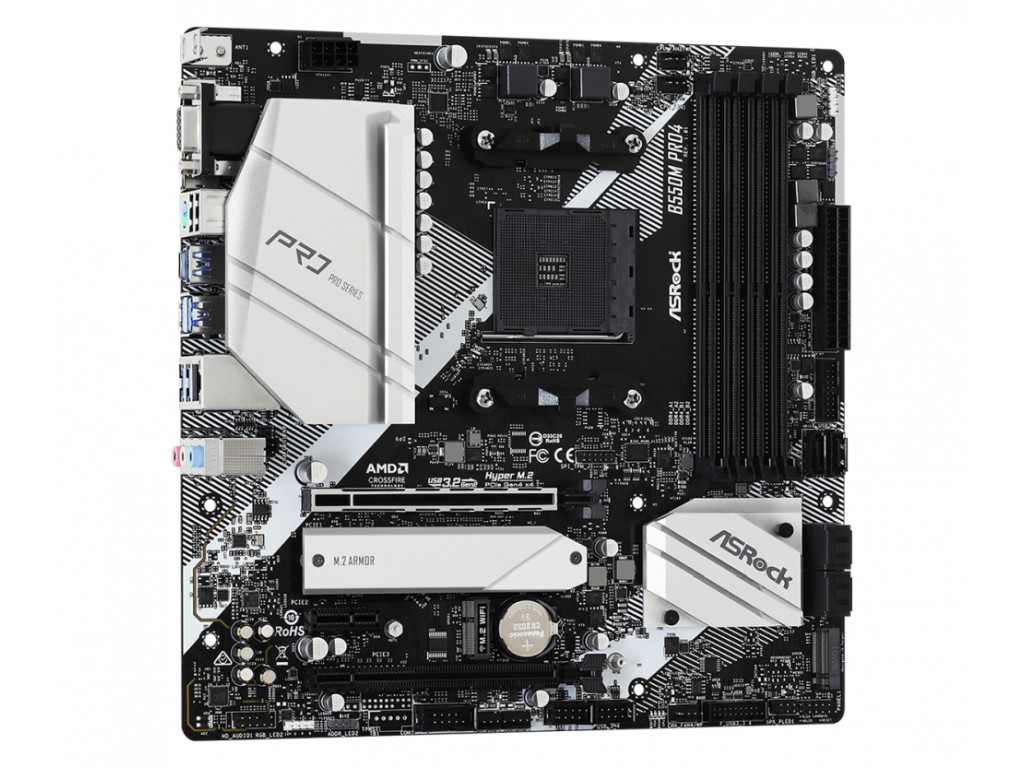

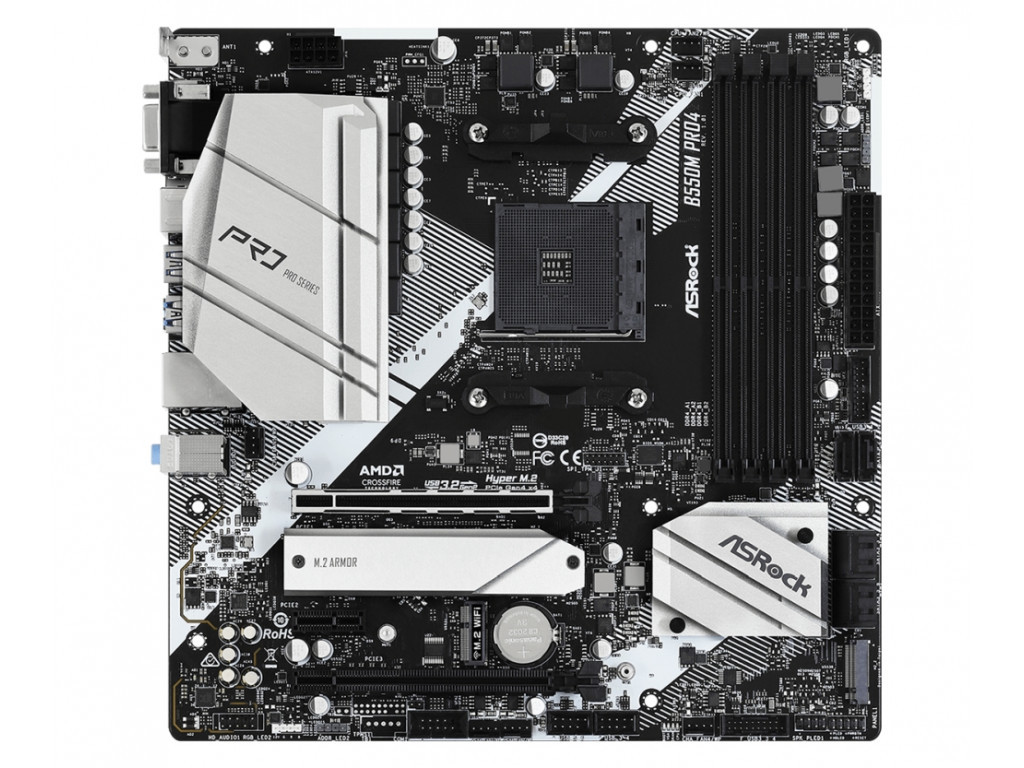

Дънна платка Asrock B550M PRO4
ASROCK
модел 90-MXBDK0-A0UAYZ
цена
209.75 лв.
код на продукта 5364
гаранция 36 месеца
тегло 1.423
наличност при доставчик
Описание на продукта
Asrock B550M PRO4 Виж характеристиките
- ✓ Модел: Asrock B550M PRO4
- ✓ За: за специализирана употреба
- ✓ Група: ASROCK компоненти за компютри
- ✓ Подгрупа: Дънни платки
- ✓ Тегло: 1.423
- 4710483931598
- СерияPRO4
- ПроцесорAMD AM4 Ryzen
- ЧипсетAMD B550
- BIOS256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment.
- Памет, слотове4 x DDR4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology, Supports Extreme Memory Profile (XMP) memory modules.
- Аудио7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); Premium Blu-ray Audio support; Supports Surge Protection; PCB Isolate Shielding; Individual PCB Layers for R/L Audio Channel; Nahimic Audio.
- МрежаPCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
- Безжична мрежа-
- Конектори1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector.
- Слотове2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), 1 x PCI Express 3.0 x1 Slot, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E).
- M.2 слот1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s), 6 x SATA3 6.0 Gb/s Connector

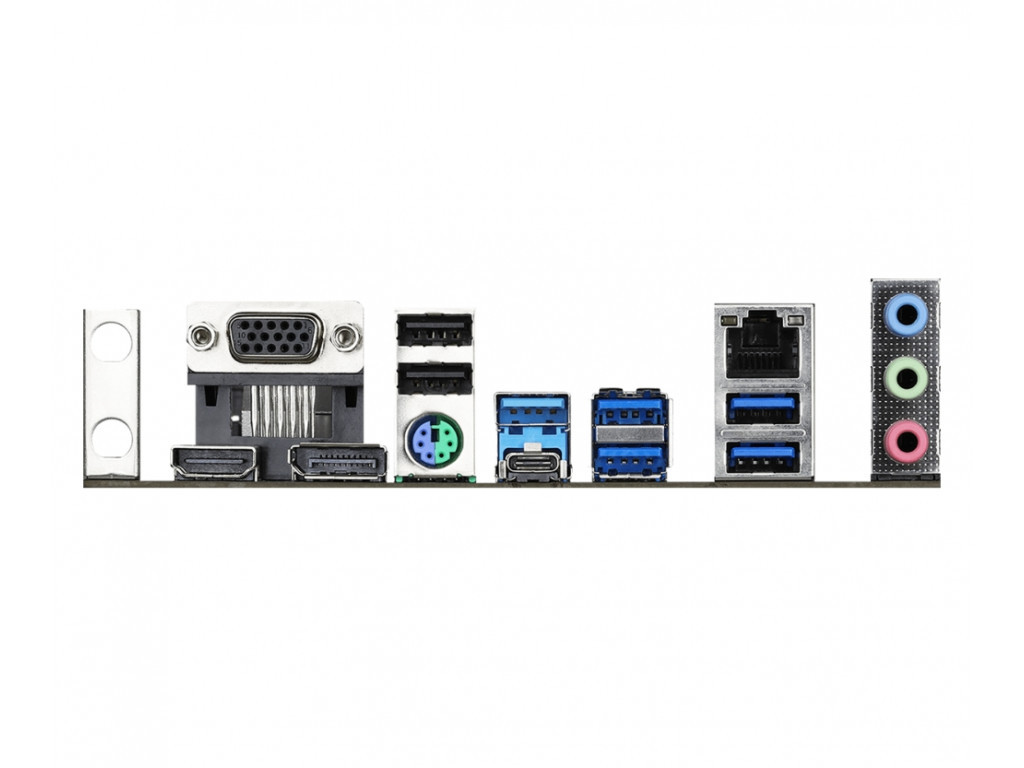

- ИнтерфейсAntenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
- СофтуерASRock Motherboard Utility (A-Tuning), ASRock XFast LAN.
- Операционна системаMicrosoft Windows 10 64-bit
- Форм-факторMicro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm.
- Специални функцииASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update.
