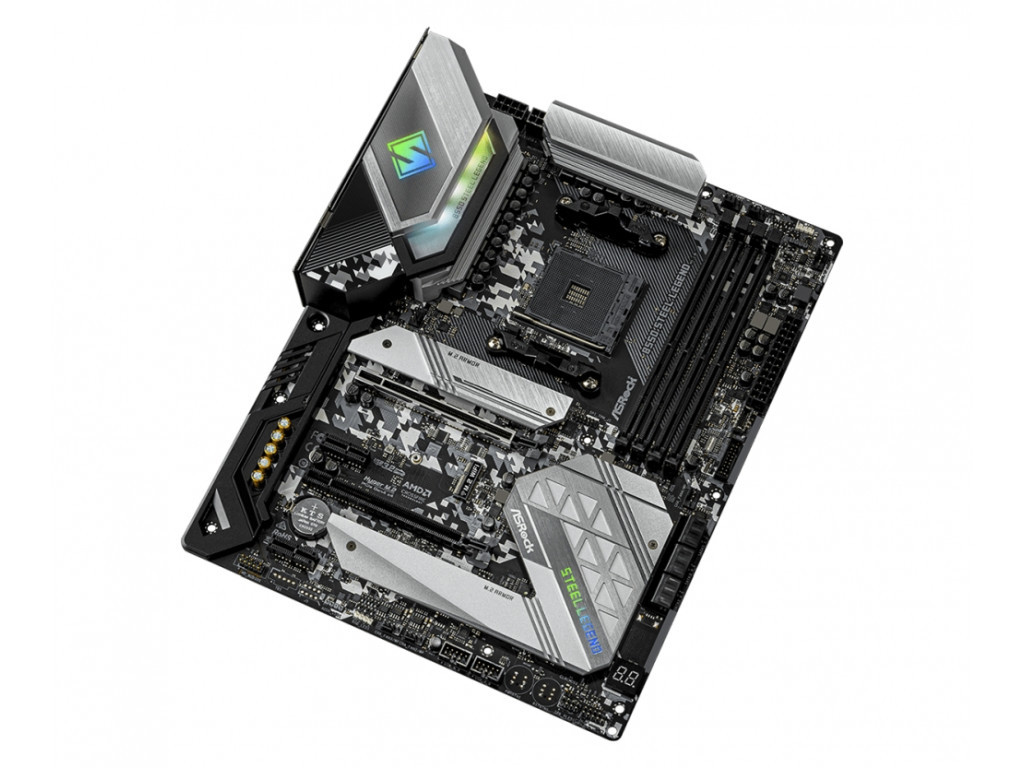

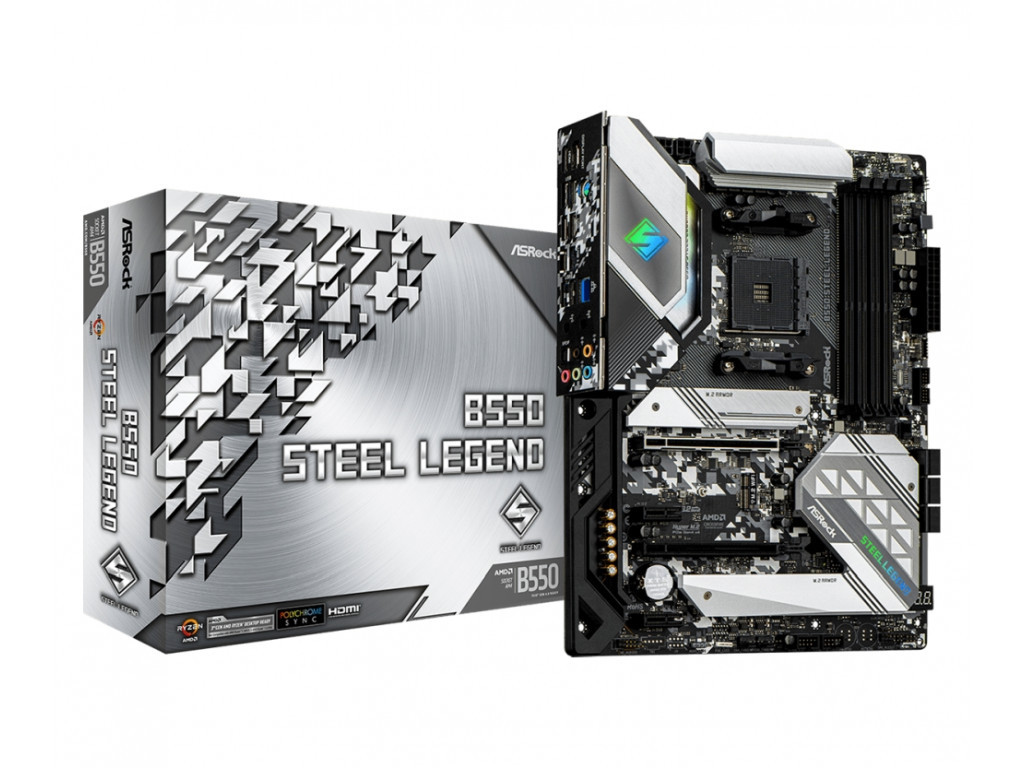

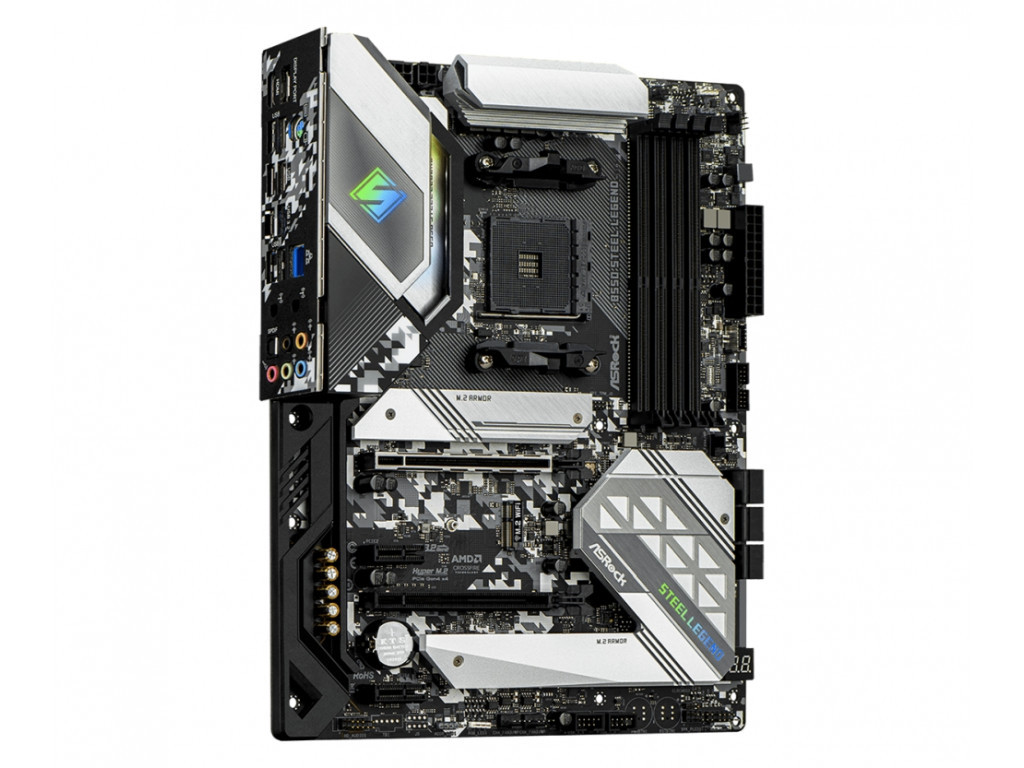

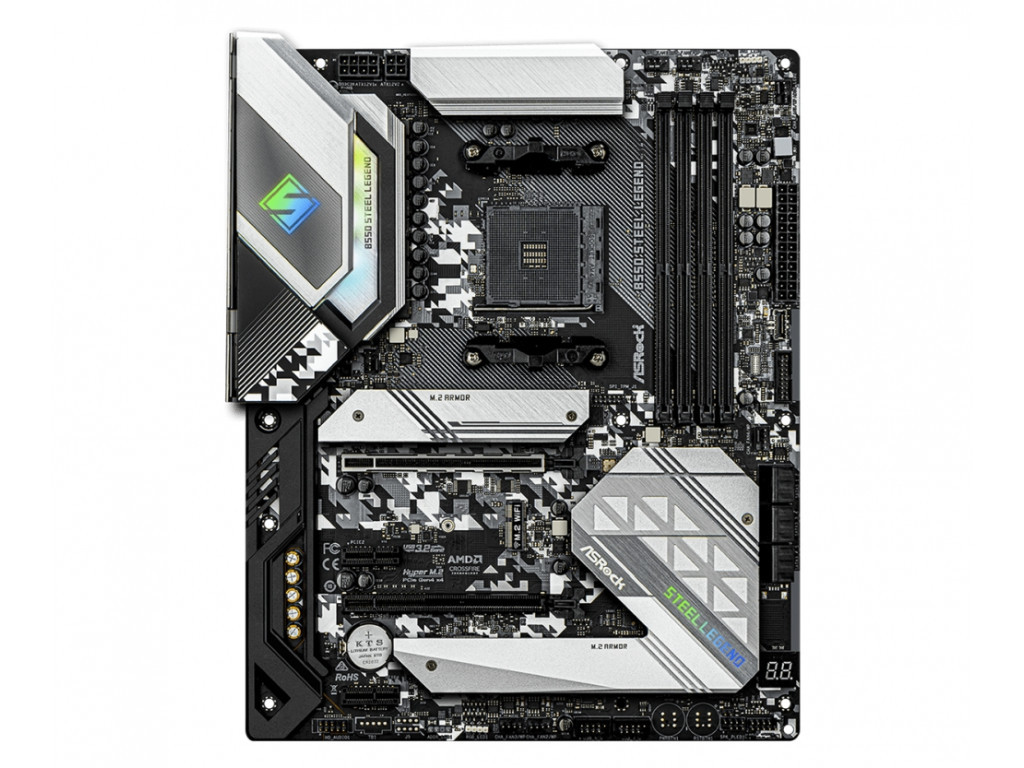

Дънна платка Asrock B550 Steel Legend
ASROCK
модел 90-MXBDF0-A0UAYZ
цена
363.6 лв.
код на продукта 5358
гаранция 36 месеца
тегло 2.375
наличност не е в наличност
Описание на продукта
Asrock B550 Steel Legend Виж характеристиките
- ✓ Модел: Asrock B550 Steel Legend
- ✓ За: за специализирана употреба
- ✓ Група: ASROCK компоненти за компютри
- ✓ Подгрупа: Дънни платки
- ✓ Тегло: 2.375
- 4710483931574
- СерияSteel Legend
- ПроцесорAMD AM4 Ryzen
- ЧипсетAMD B550
- BIOS256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment.
- Памет, слотове4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology
- Аудио7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, 120dB SNR DAC with Differential Amplifier, Pure Power-In, Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing on Rear Out port, Gold Audio Jac
- Мрежа2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE.
- Безжична мрежа-
- Конектори1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
- СлотовеAMD Ryzen series CPUs (Matisse)- 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; 2 x PCI Express 3.0 x1 Slots, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
- M.2 слот1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module.

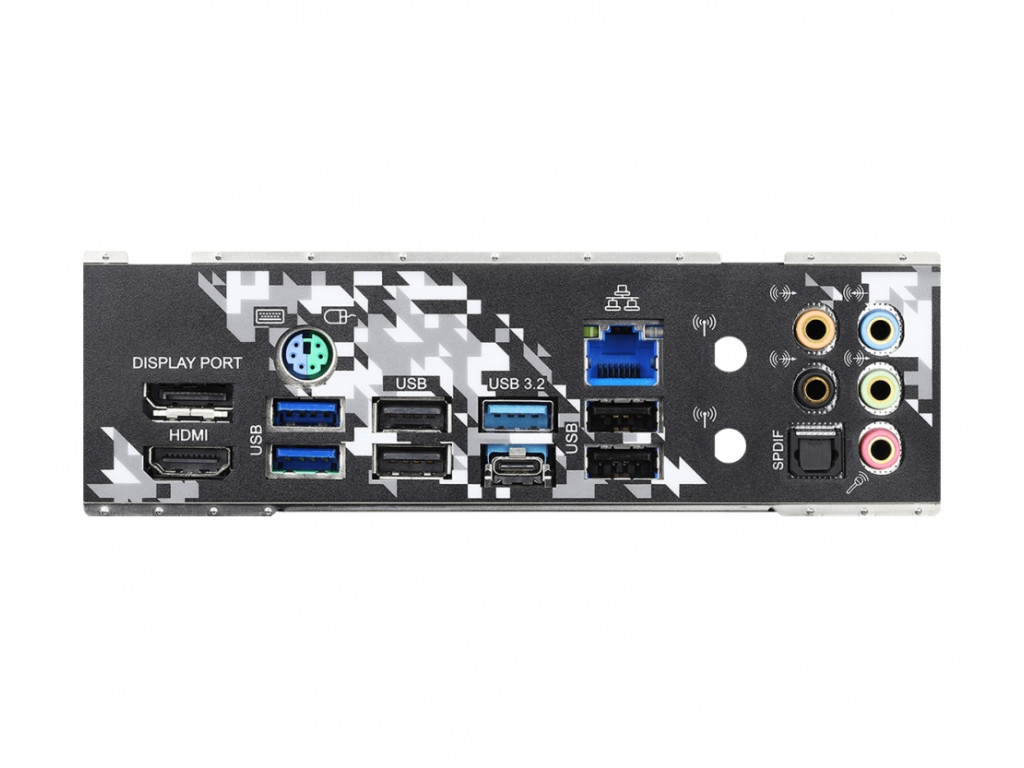

- Интерфейс2 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
- СофтуерASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC.
- Операционна системаMicrosoft Windows 10 64-bit
- Форм-факторATX
- Специални функцииASRock USB 3.2 Gen2, ASRock Super Alloy, 2.5G LAN, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock Ultra USB Power, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop.
