Дънна платка Asrock B760M-H/M.2

★★★★★ (0 ревюта)

ASROCK

_модел 90-MXBM40-A0UAYZ

_цена 203.37 лв.

_{код на продукта} 26409

_{наличност} при доставчик

Описание на продукта

Серия

Phantom Gaming
Процесор

Intel 1700
Чипсет

Intel B760
BIOS

128Mb AMI UEFI Legal BIOS with GUI support
Памет

DDR5
Брой слотове

2 DIMM Slots, Max. capacity of system memory: 96GB
Аудио

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Безжична мрежа

-
Конектори

SPI TPM Header, Chassis Intrusion and Speaker Header, 24 pin ATX Power Connector, 8 pin 12V Power Connector, 8 pin 12V Power Connector, Front Panel Audio Connector, 2x USB 2.0 Header, USB 3.2 Gen1 Header
Слотове

CPU: PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
M.2 слот

M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Интерфейс

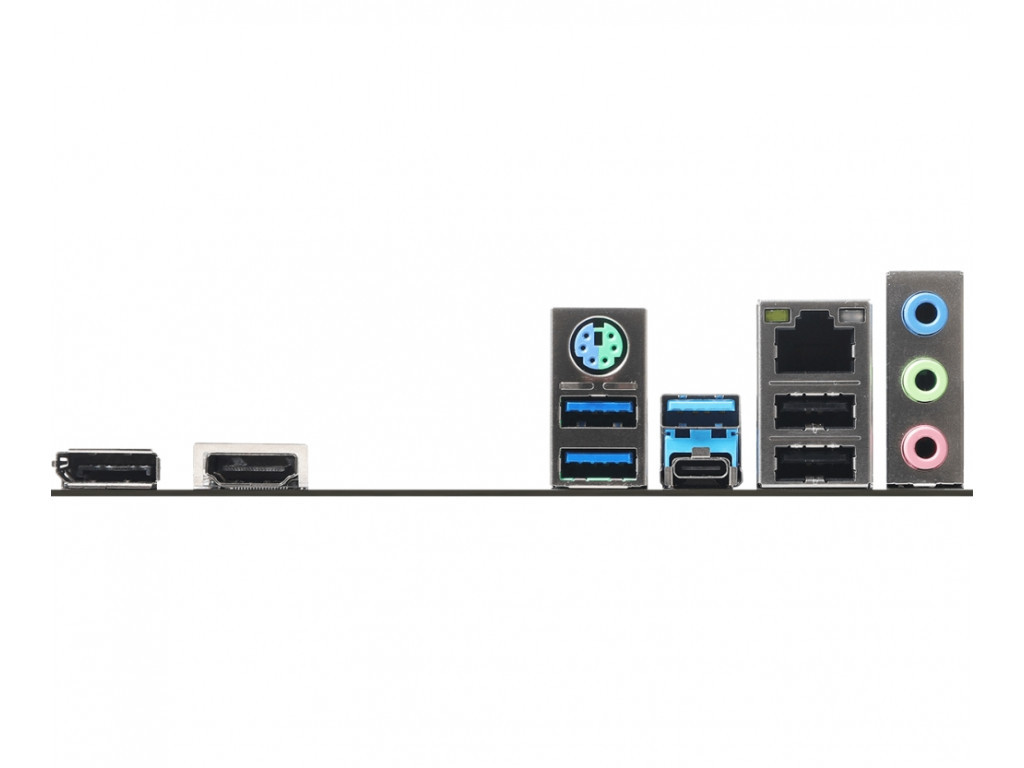

2 x Antenna Mounting Points, PS/2 Mouse/Keyboard Port, HDMI Port, DisplayPort 1.4, USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports, RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone
Софтуер

ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN
Операционна система

Microsoft Windows 10 64-bit / 11 64-bit
Форм-фактор

Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Специални функции

Rock-Solid Durability, EZ Update
